Technical Data Sheet
●	Center Frequency(F0)	6.0GHz
●	Pass Band Frequency	5.3 ~ 6.7GHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤1.0dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Rejection	≥50dB @ DC ~ 4.9GHz	≥50dB @ 7.1 ~ 10GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

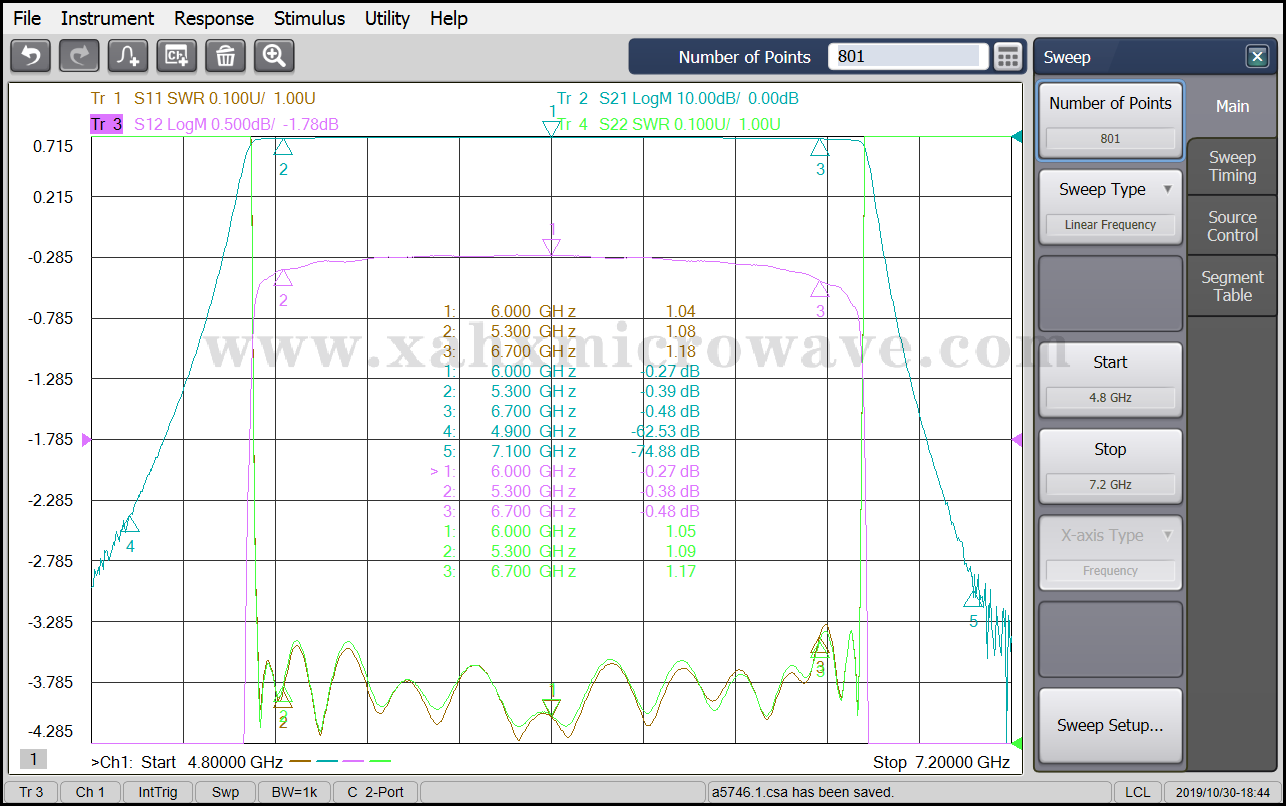

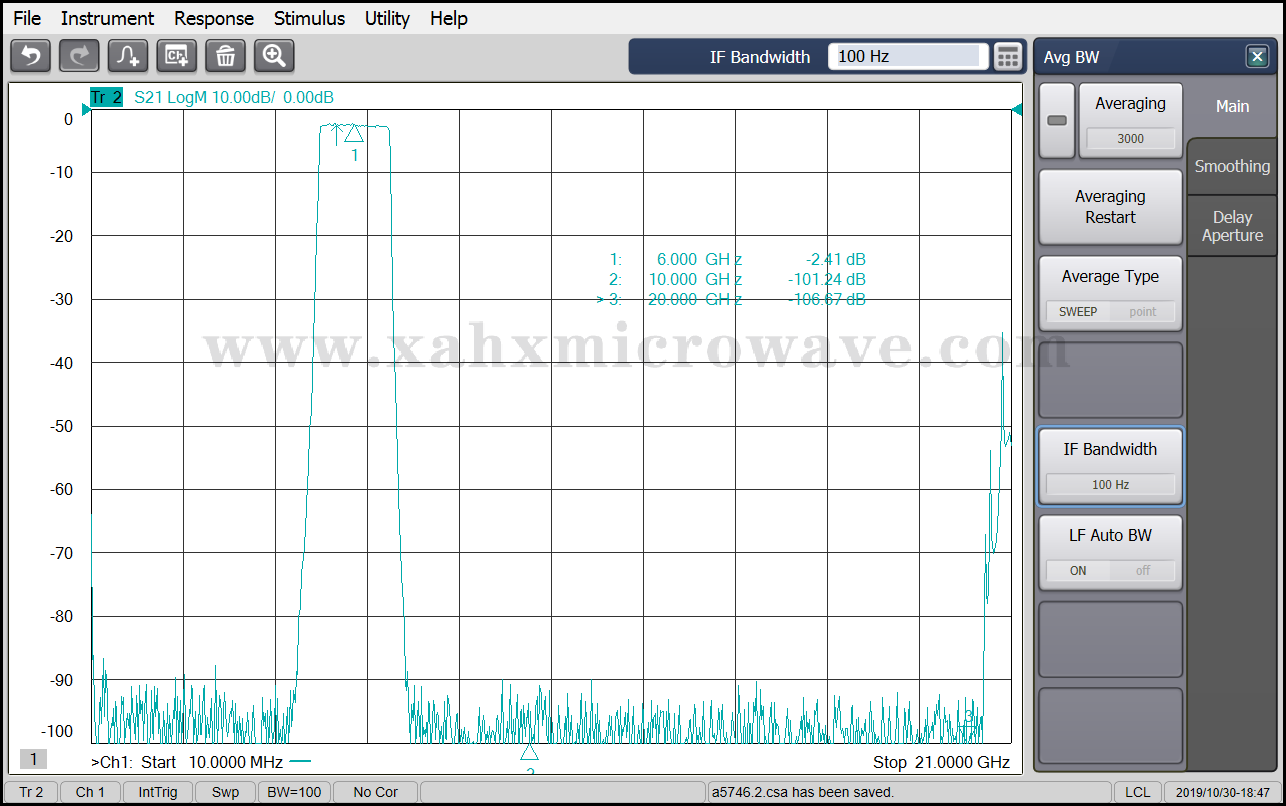

Test Curve
