S/N

Item

Parameters

1

Center Frequency(F0)

40MHz

2

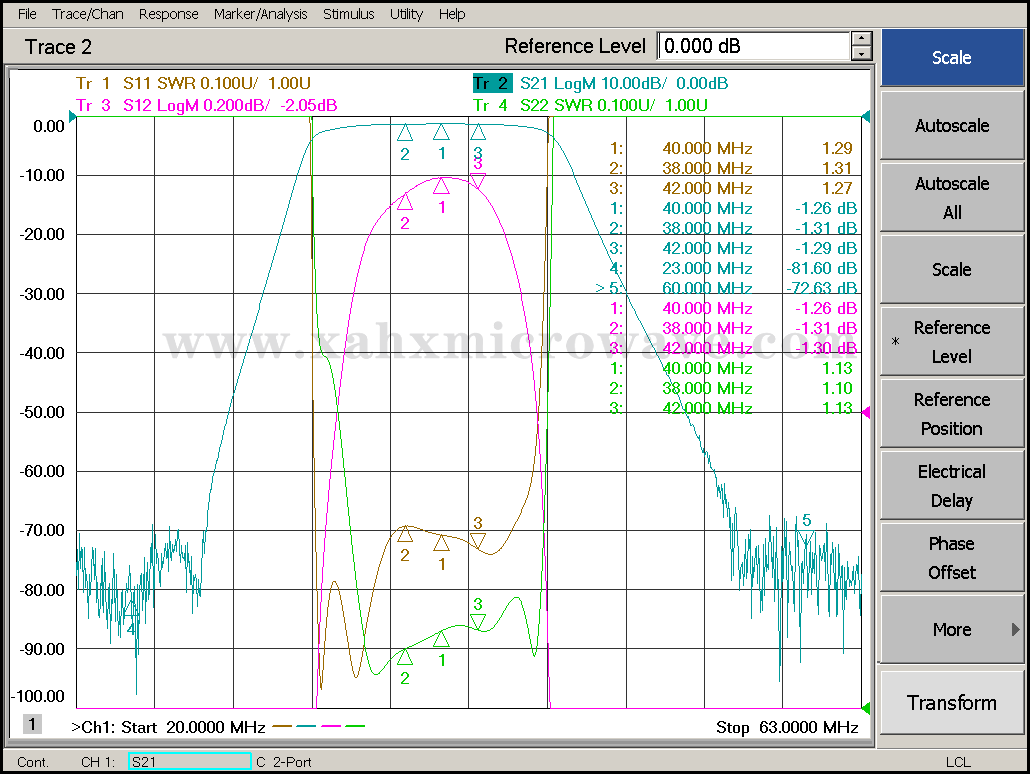

1.0dB Pass Band Bandwidth

4.0MHz (38 ~ 42MHz)

3

Pass Band Insertion Loss

≤2.0dB

4

Pass Band VSWR

≤1.5:1

5

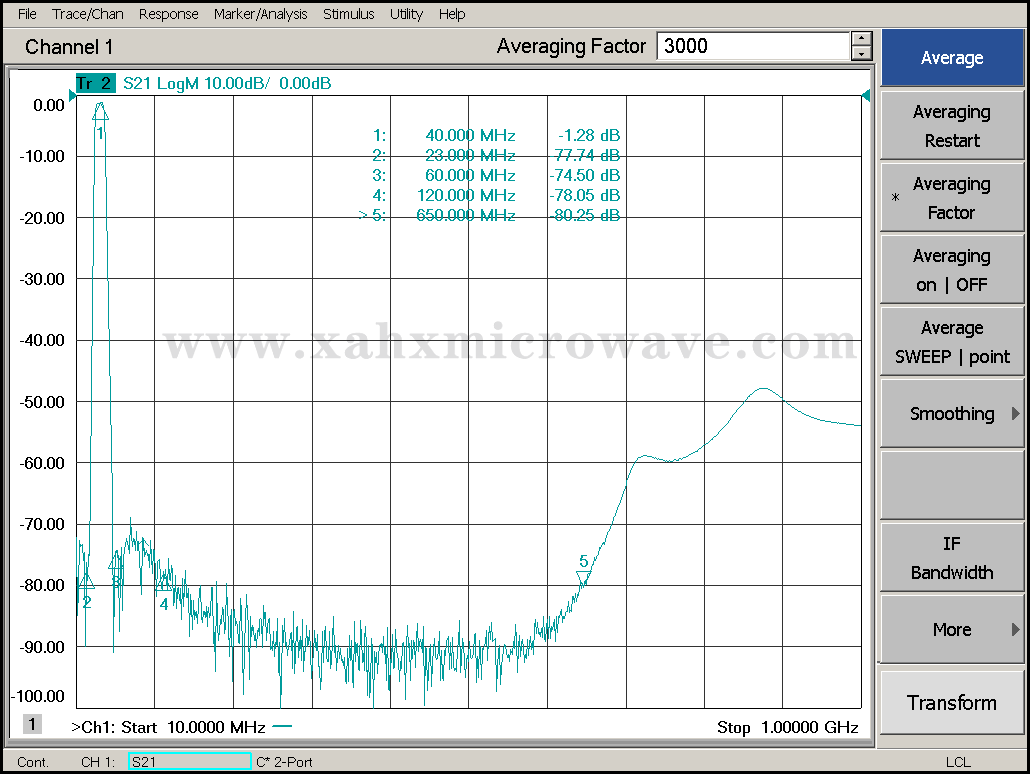

Stop Band Attenuation

≥60dB @ DC ~ 23MHz

≥60dB @ 60 ~ 120MHz

6

Impedance

50 Ohms

7

Power Handling

15dBm Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃

11

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

12

Dimensions

40*18*13mm
