Technical Data Sheet
●	Center Frequency(F0)	10.4GHz
●	Pass Band Frequency	9.9 ~ 10.9GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥50dB @ DC ~ 9.4GHz	≥50dB @ 11.4 ~ 18GHz
●	Impedance	50 Ohms
●	Power	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

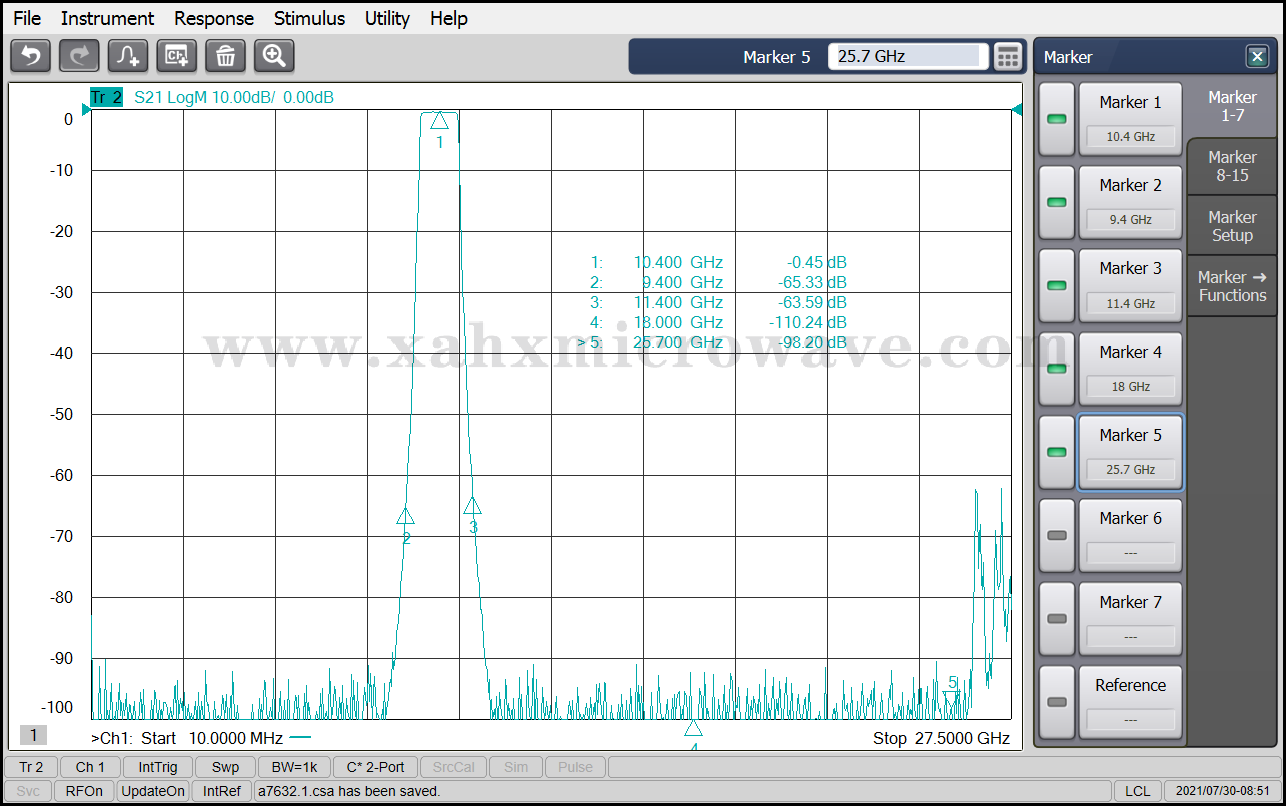

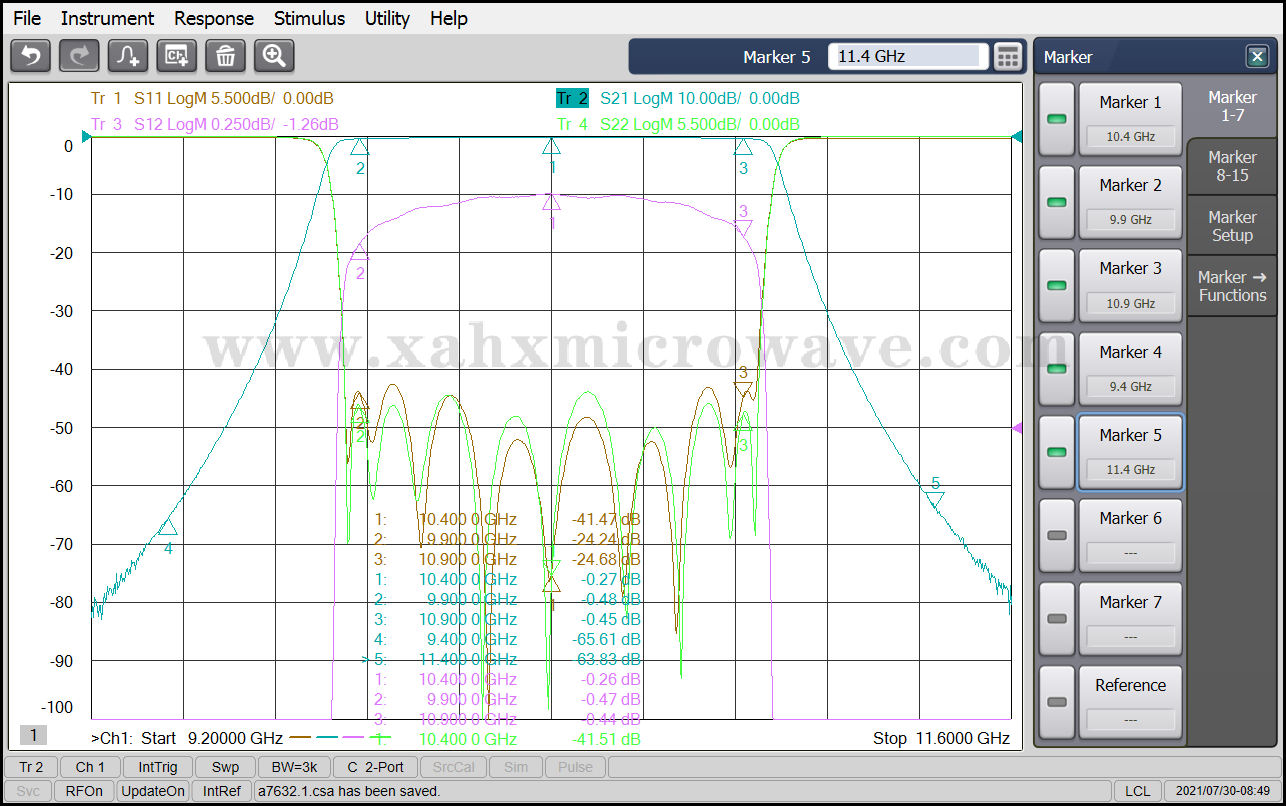

Test Curve
