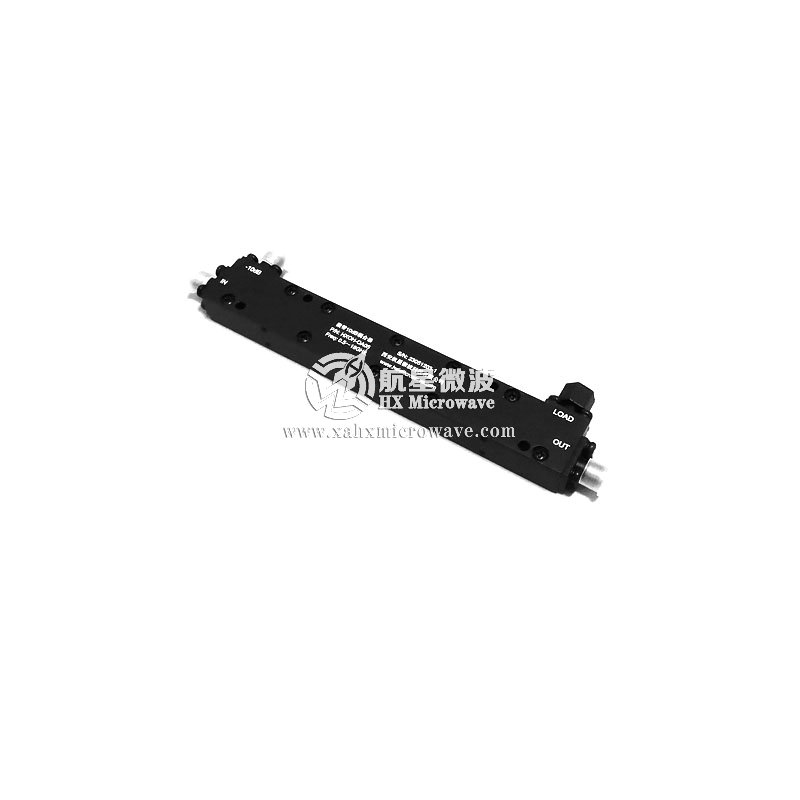

1-12GHz耦合器16dB定向耦合器

Serial

Parameters

1

Coupling

16±1.0dB

2

Frequency Range

1～12GHz

3

Insertion Loss

≤0.86dB (Excluding coupling losses 0.14dB)

4

Frequency Sensitivity

≤±1.0dB

5

VSWR

≤1.45:1

6

Directivity

≥15dB

7

Power Handling

≤30W

8

Impedance

50 Ohms

9

Surface Finish

Black Paint

10

Connectors

SMA-Female

11

Net weight

0.05 KG

12

Configuration

As Below (Size Unit: mm[inch])
