| Technical Data Sheet | |||
| ● | Pass Band Frequency | 885 ~ 889MHz | 930 ~ 934MHz |
| ● | Pass Band Insertion Loss | ≤1.5dB | ≤5.0dB |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Stop Band Rejection | ≥40dB @ 400 ~ 875MHz | ≥40dB @ 889 ~ 925MHz |
| ≥20dB @ 875 ~ 882MHz | ≥25dB @ 936 ~ 940MHz | ||
| ≥20dB @ 892 ~ 899MHz | ≥60dB @ 940 ~ 2200MHz | ||
| ≥40dB @ 899 ~ 925MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 70W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |

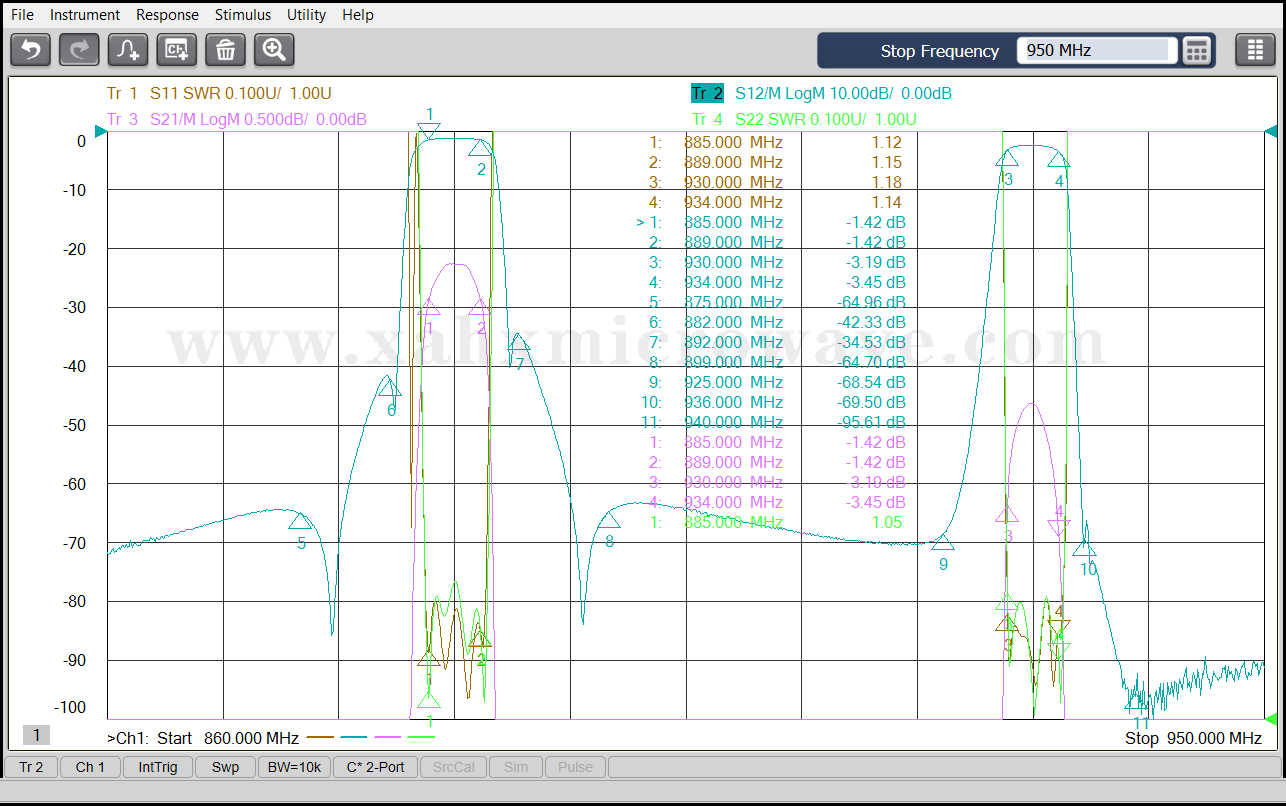

| Test Curve | |||
