| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7000MHz | |
| ● | Pass Band Frequency | 6800 ~ 7200MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.45dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6400MHz | ≥80dB @ 7600 ~ 18000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

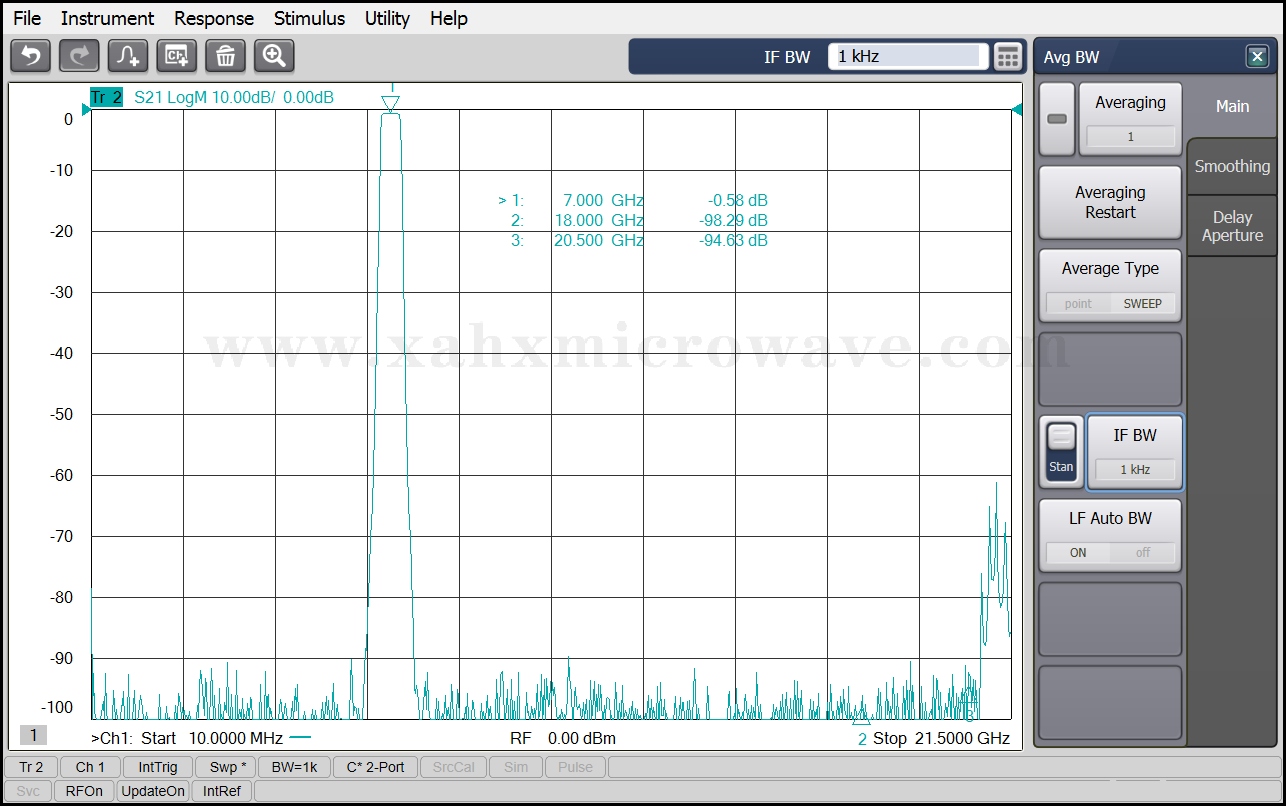

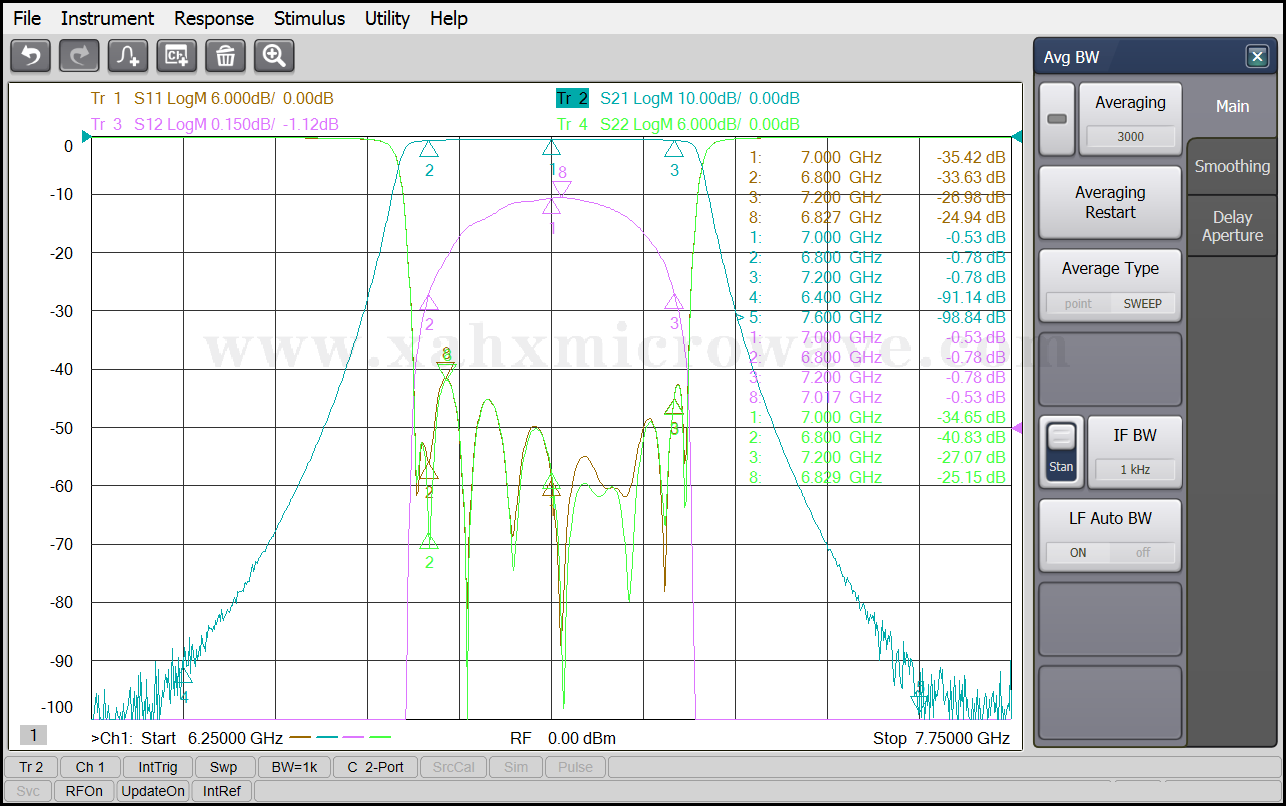

| Test Curve | |||
