| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 9982MHz |
| ● | 3dB Bandwidth | 20MHz Max. (9972 ~ 9992MHz Max.) |
| ● | Insertion Loss @ F0 | ≤2.0dB @ 9982MHz |
| ● | Return Loss @ F0 | ≥18dB @ 9982MHz |
| ● | Stop Band Rejection | ≥50dB @ F0±70MHz (DC ~ 9912MHz , 10052 ~ 13000MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | +15℃ ~ +30℃ |

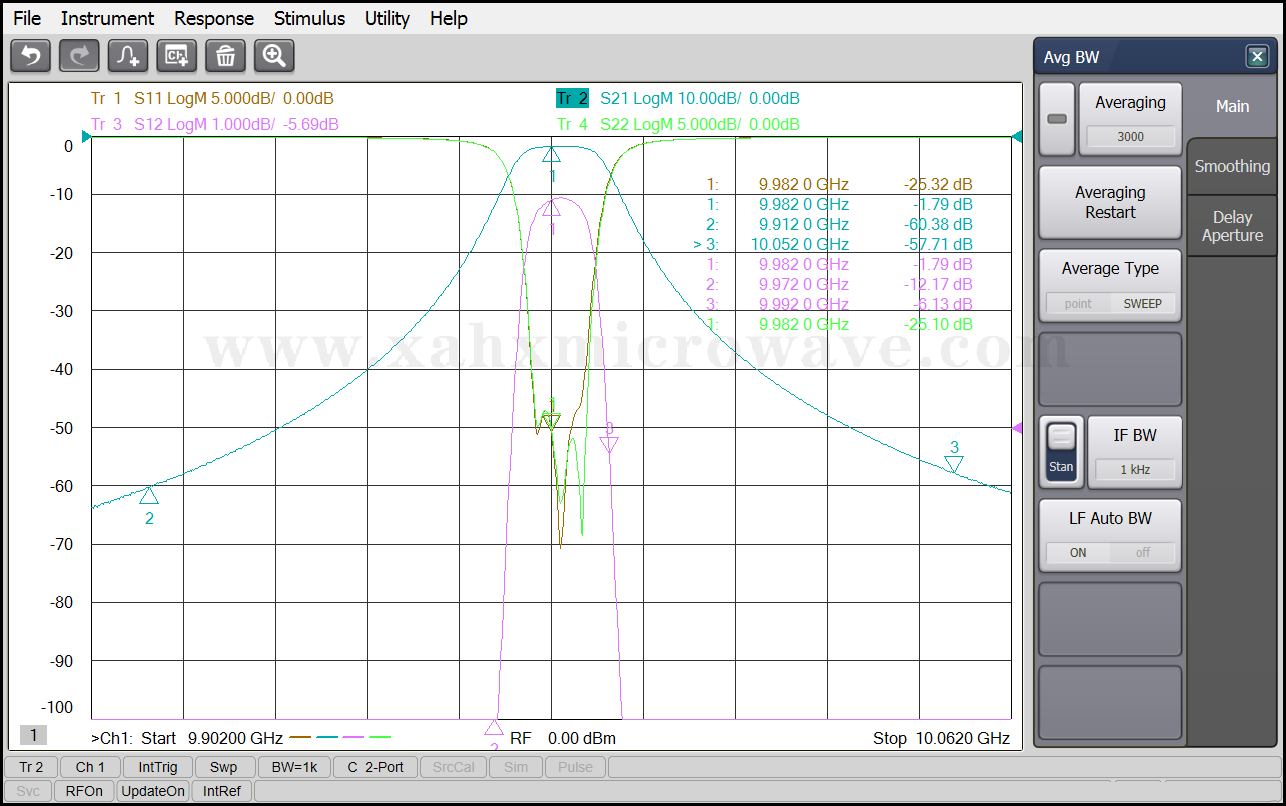

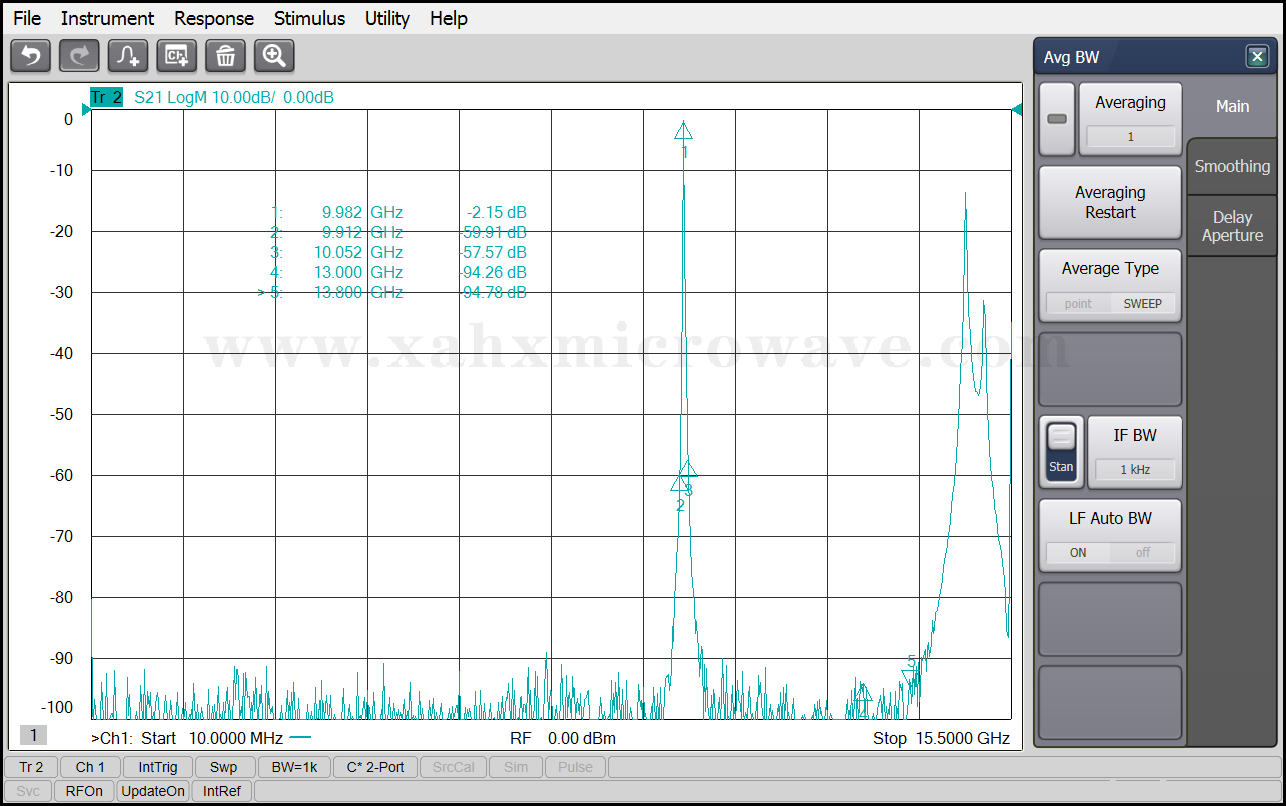

| Test Curve | ||
