Technical Data Sheet
●	Center Frequency(F0)	4700MHz
●	Pass Band Frequency	4400 ~ 5000MHz
●	Pass Band Insertion Loss	≤1.4dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band VSWR	≤1.22:1
●	Stop Band Rejection	≥70dB @ DC ~ 4200MHz	≥70dB @ 5200 ~ 14500MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

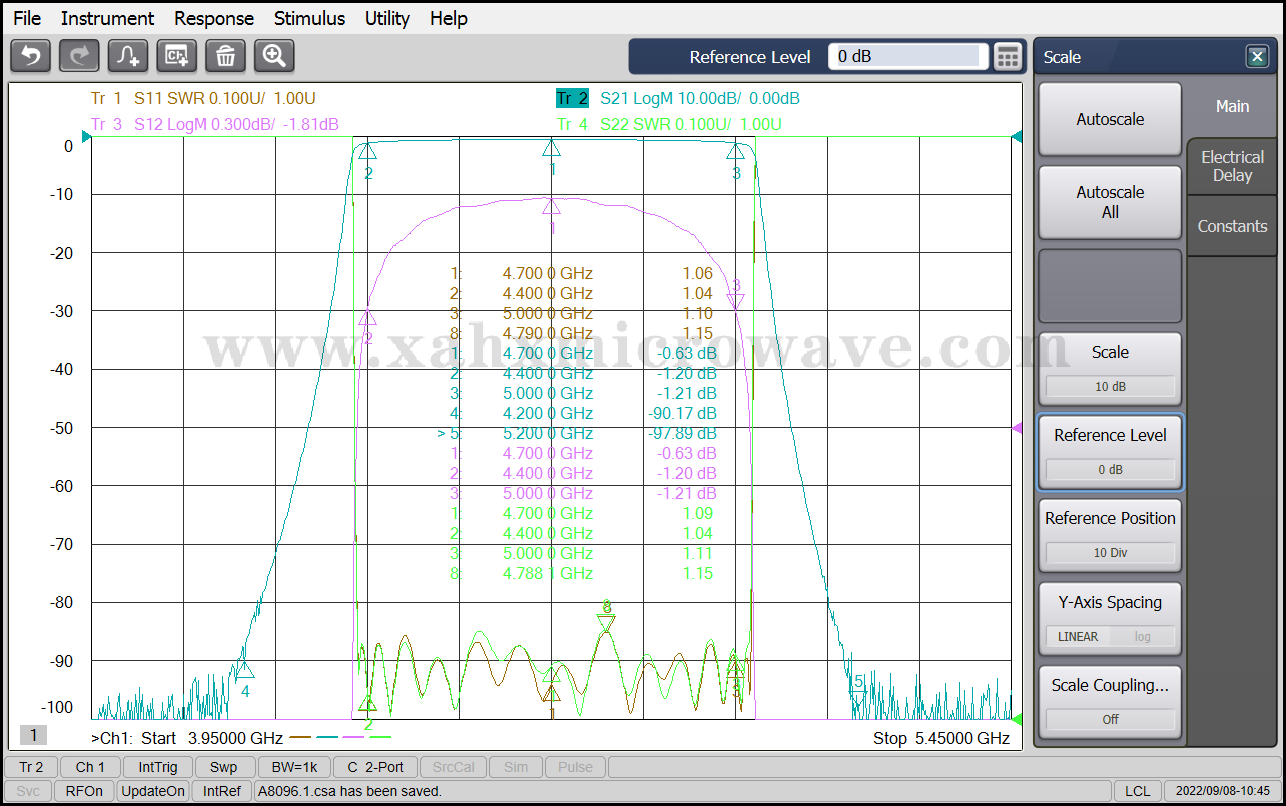

Test Curve
