Technical Data Sheet
●	Center Frequency(F0)	7.2GHz
●	Pass Band Bandwidth	±100MHz (7.1 ~ 7.3GHz)
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.25dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥50dB @ F0±300MHz (DC ~ 6.9GHz , 7.5 ~ 22GHz)
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

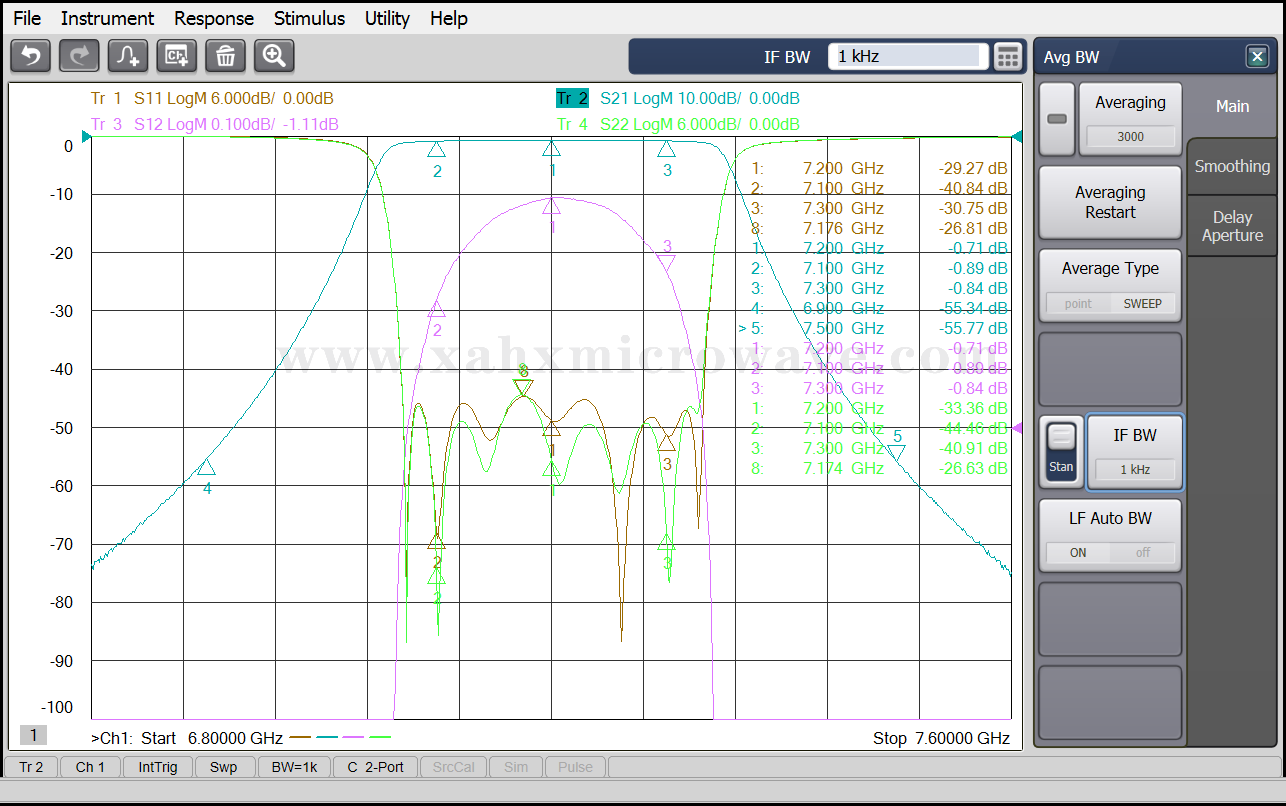

Test Curve
