Technical Data Sheet
●	Center Frequency(F0)	885MHz
●	Pass Band Frequency	880 ~ 890MHz
●	Pass Band Insertion Loss	≤1.7dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥40dB @ DC ~ 873MHz	≥40dB @ 897 ~ 2700MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Male / N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

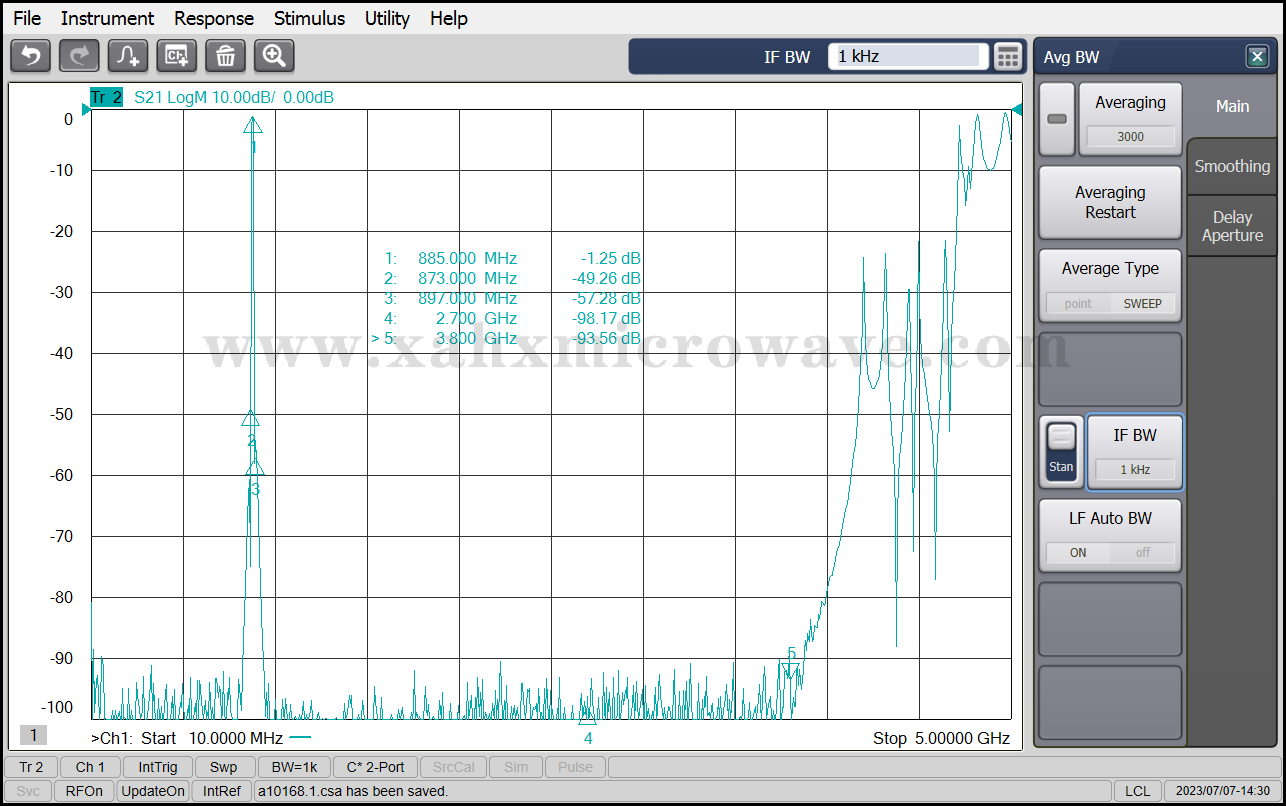

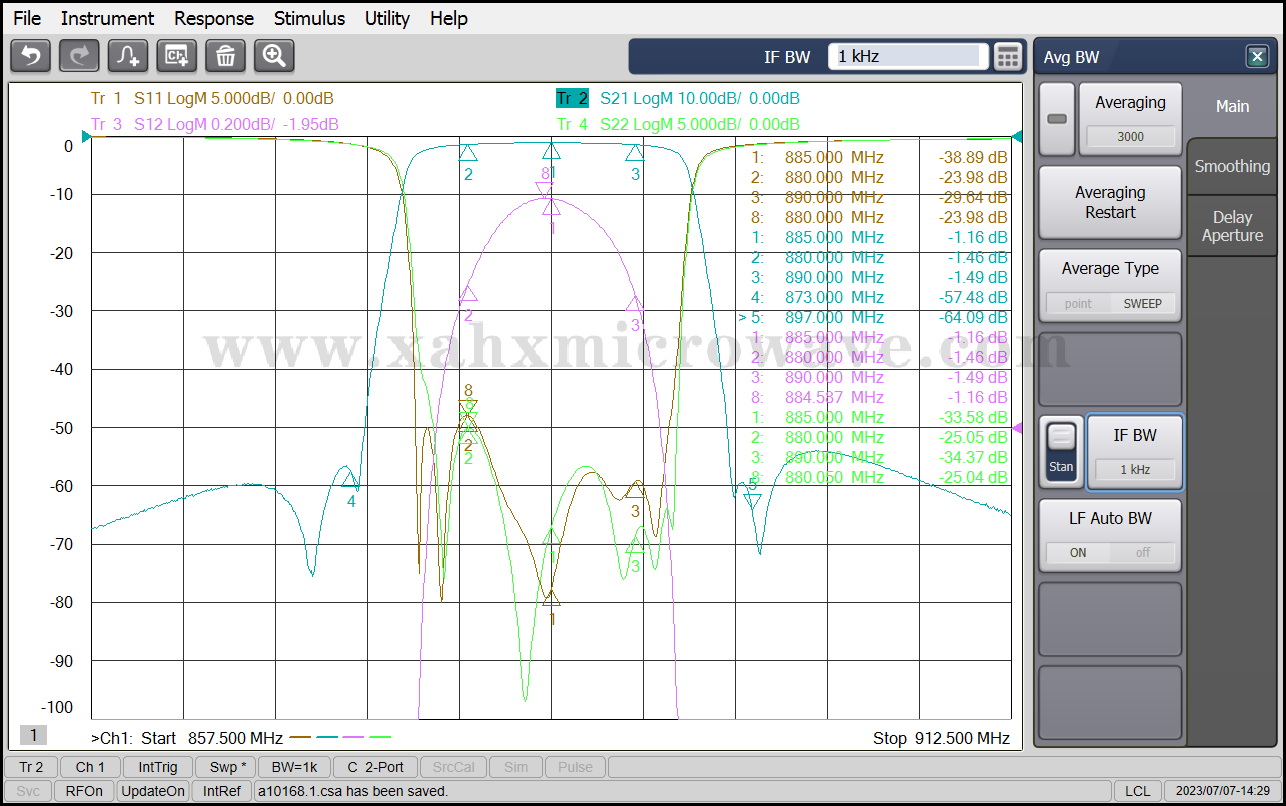

Test Curve
