| Technical Data Sheet | ||
| ● | Stop Band Frequency | 2400 ~ 2483.5MHz |
| ● | Stop Band Attenuation | ≥60dB |
| ● | Pass Band Frequency | DC ~ 2365.5MHz , 2515 ~ 6200MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB @ DC ~ 2362MHz , 2515 ~ 6200MHz |
| ≤3.0dB @ 2362 ~ 2365.5MHz | ||
| ● | Pass Band VSWR | ≤1.5:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 50W Max. |
| ● | Connectors | N-Male / N-Female |

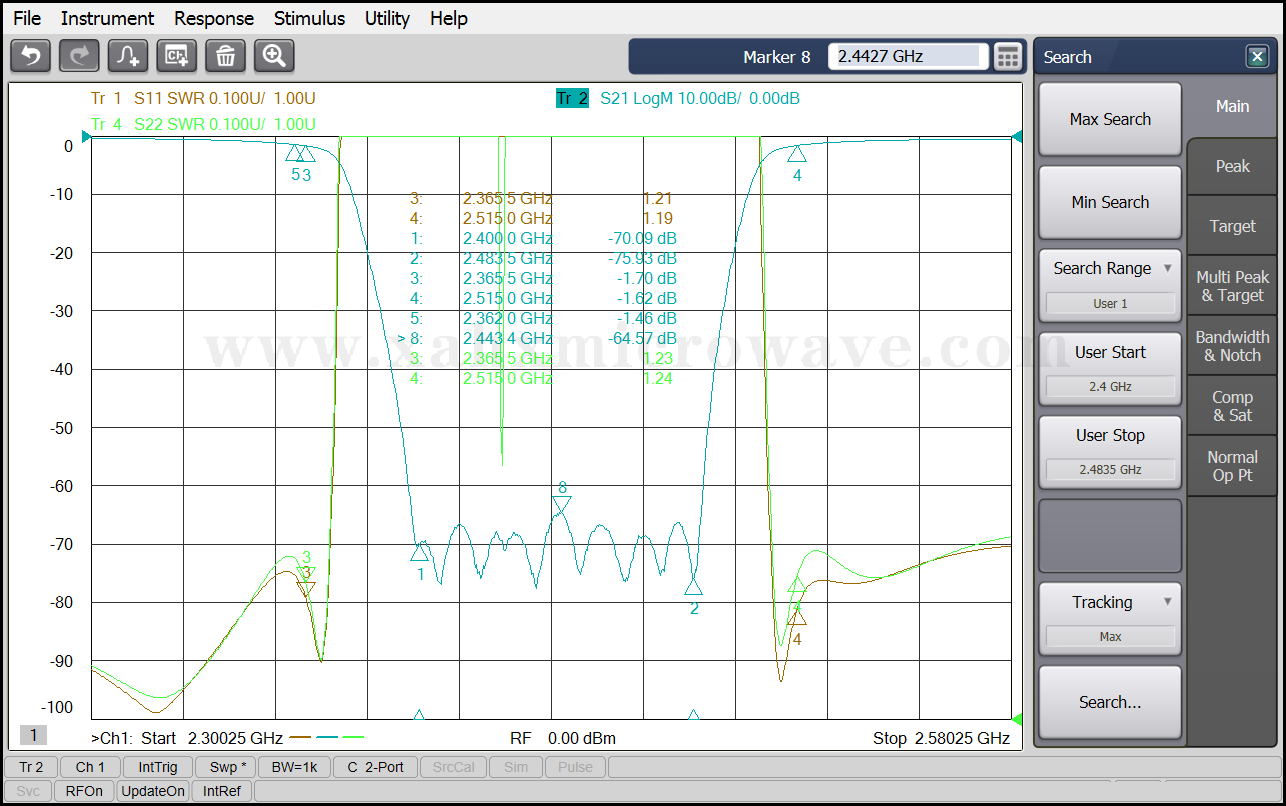

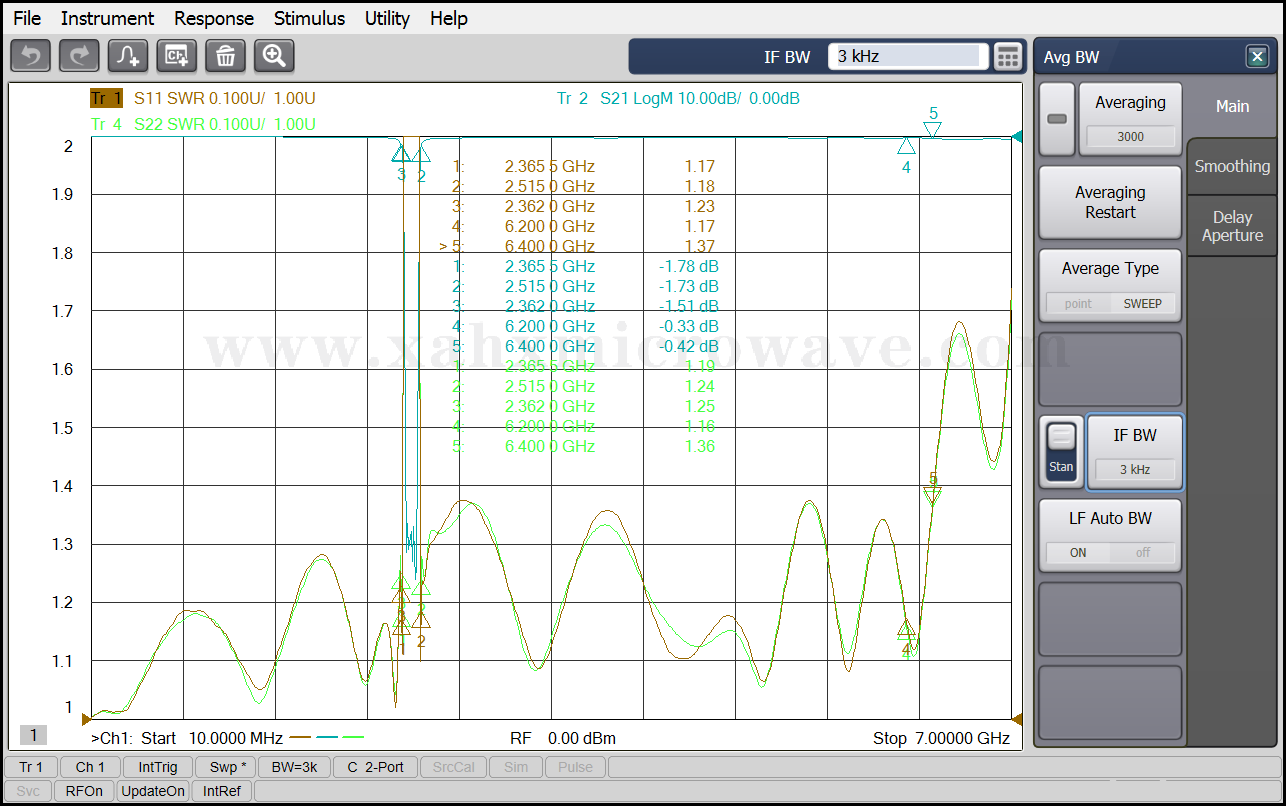

| Test Curve | ||
