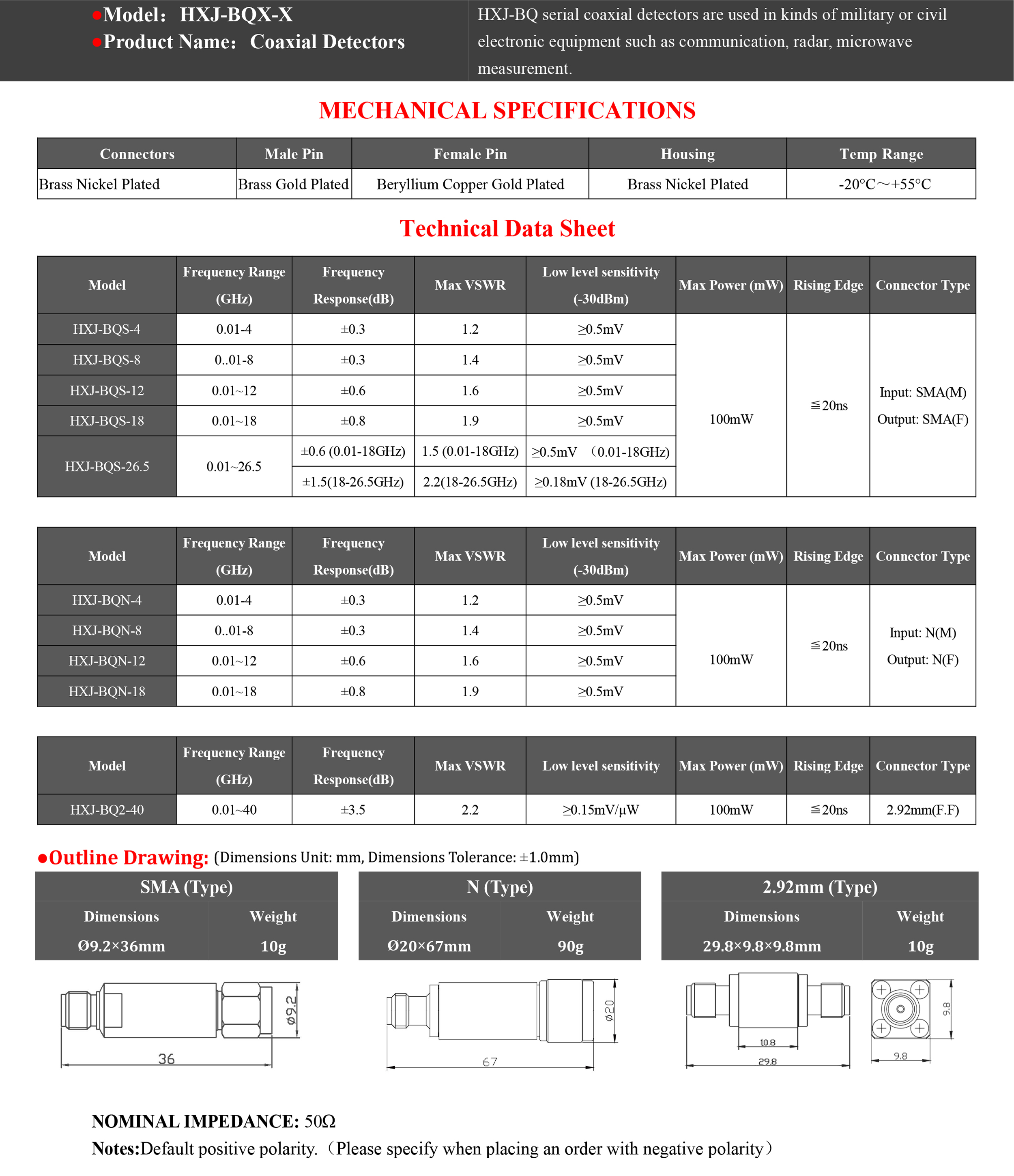

| 《N-Type》 Technical Data Sheet | ||||
| Model | Frequency Range | Frequency Response | Max VSWR | Low level sensitivity |
| (GHz) | (dB) | (-30dBm) | ||
| HXJ-BQN-4 | 0.01-4 | ±0.3 | 1.2 | ≥0.5mV |
| HXJ-BQN-8 | 0..01-8 | ±0.3 | 1.4 | ≥0.5mV |
| HXJ-BQN-12 | 0.01~12 | ±0.6 | 1.6 | ≥0.5mV |
| HXJ-BQN-18 | 0.01~18 | ±0.8 | 1.9 | ≥0.5mV |
| ●Max Power (mW):100mW | ||||
| ●Rising Edge:≦20ns | ||||
| ●Connector Type:Input: N(M) Output: N(F) | ||||
| ●NOMINAL IMPEDANCE: 50Ω | ||||
| ●Parameter Test: (under rising edge 50 Ω state) (under output voltage 1M Ω state) | ||||
| ●Notes:Default positive polarity.（Please specify when placing an order with negative polarity） | ||||
