| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 4500MHz | |
| ● | Pass Band Frequency | 4000 ~ 5000MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 3400MHz | ≥30dB @ 5200 ~ 5350MHz |
| ≥30dB @ 3400 ~ 3800MHz | ≥80dB @ 5350 ~ 10000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

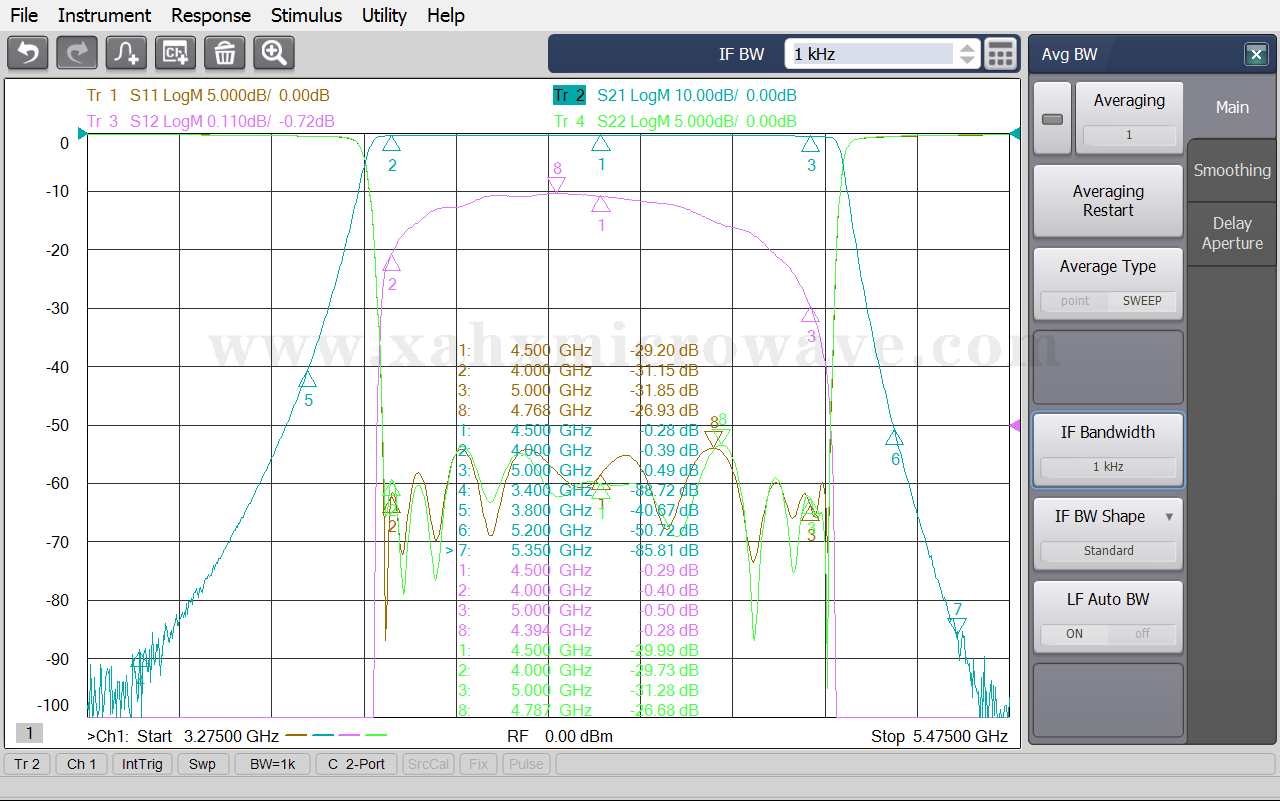

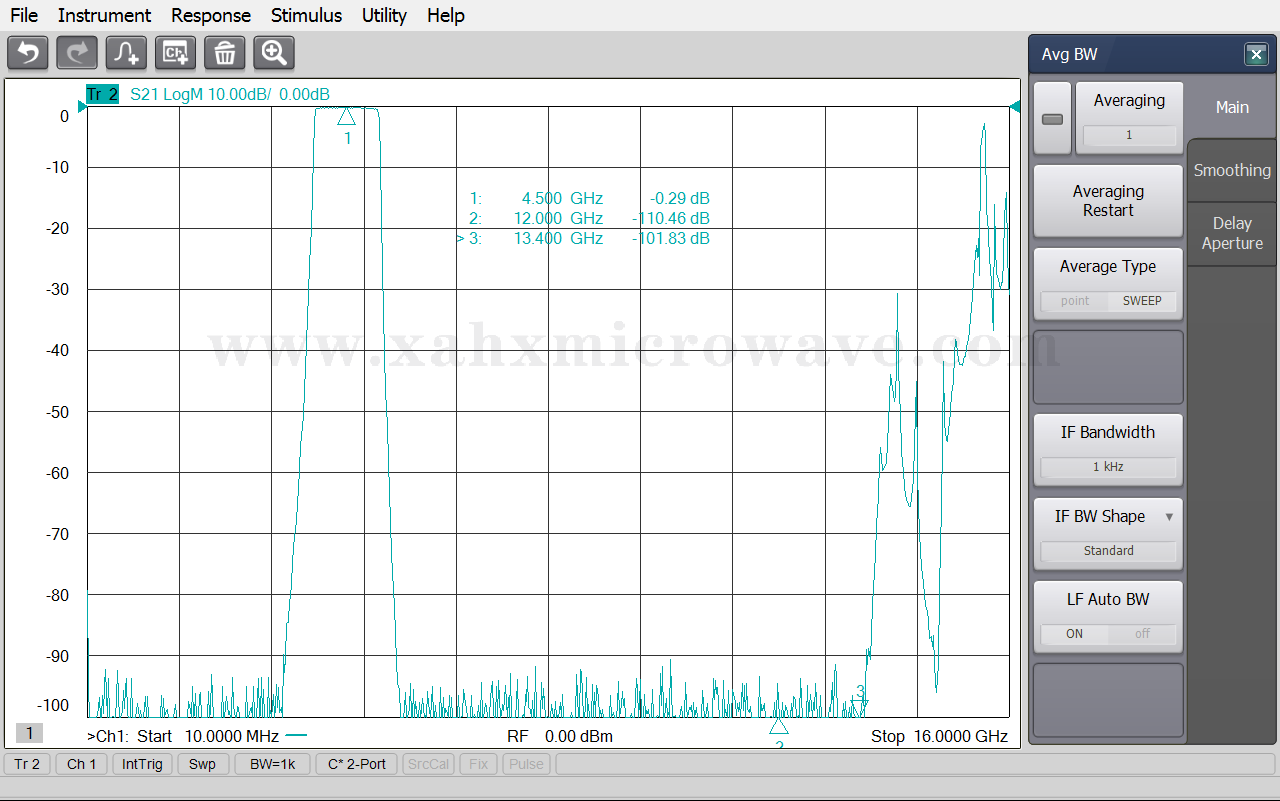

| Test Curve | |||
