| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6585MHz | |
| ● | Pass Band Frequency | 6425 ~ 6745MHz | |
| ● | Pass Band Insertion Loss | ≤4.0dB | |
| ● | Pass Band Ripple | ≤3.5dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥30dB @ DC ~ 6405MHz | ≥30dB @ 6765 ~ 9000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

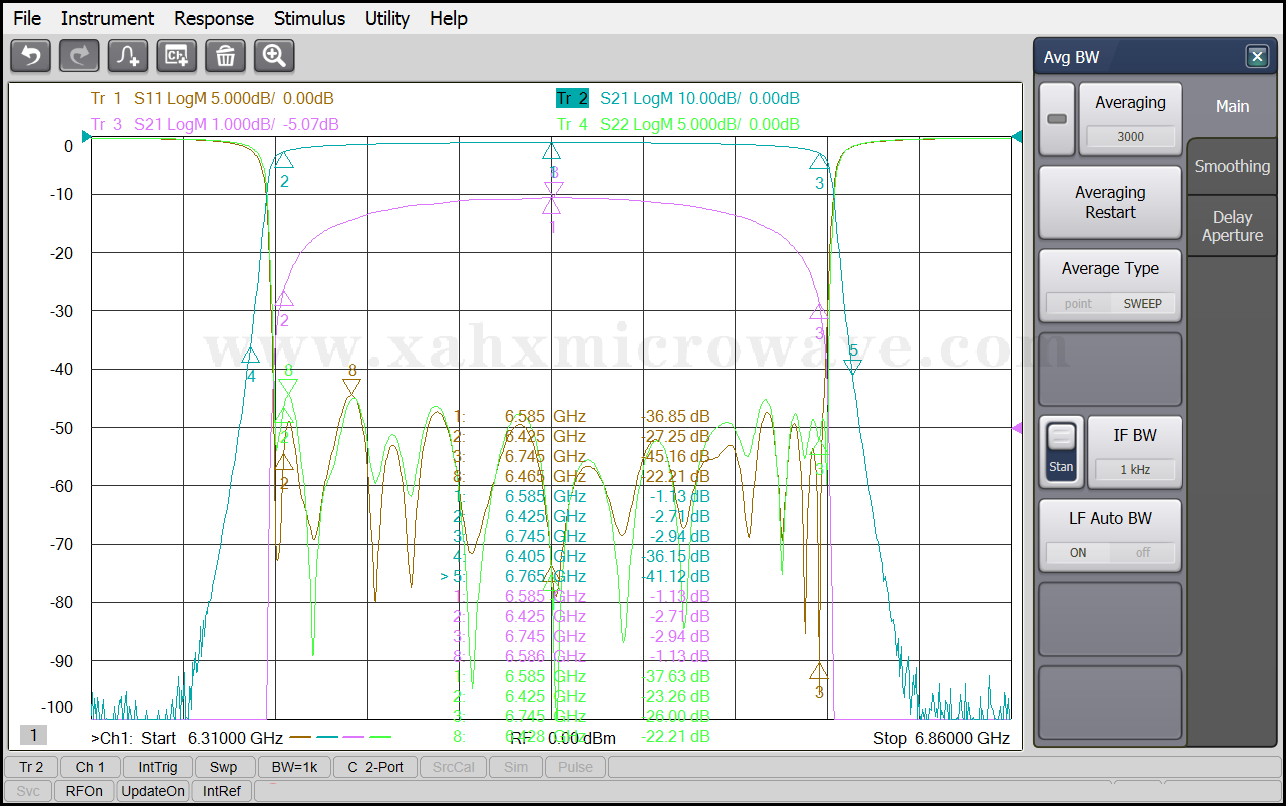

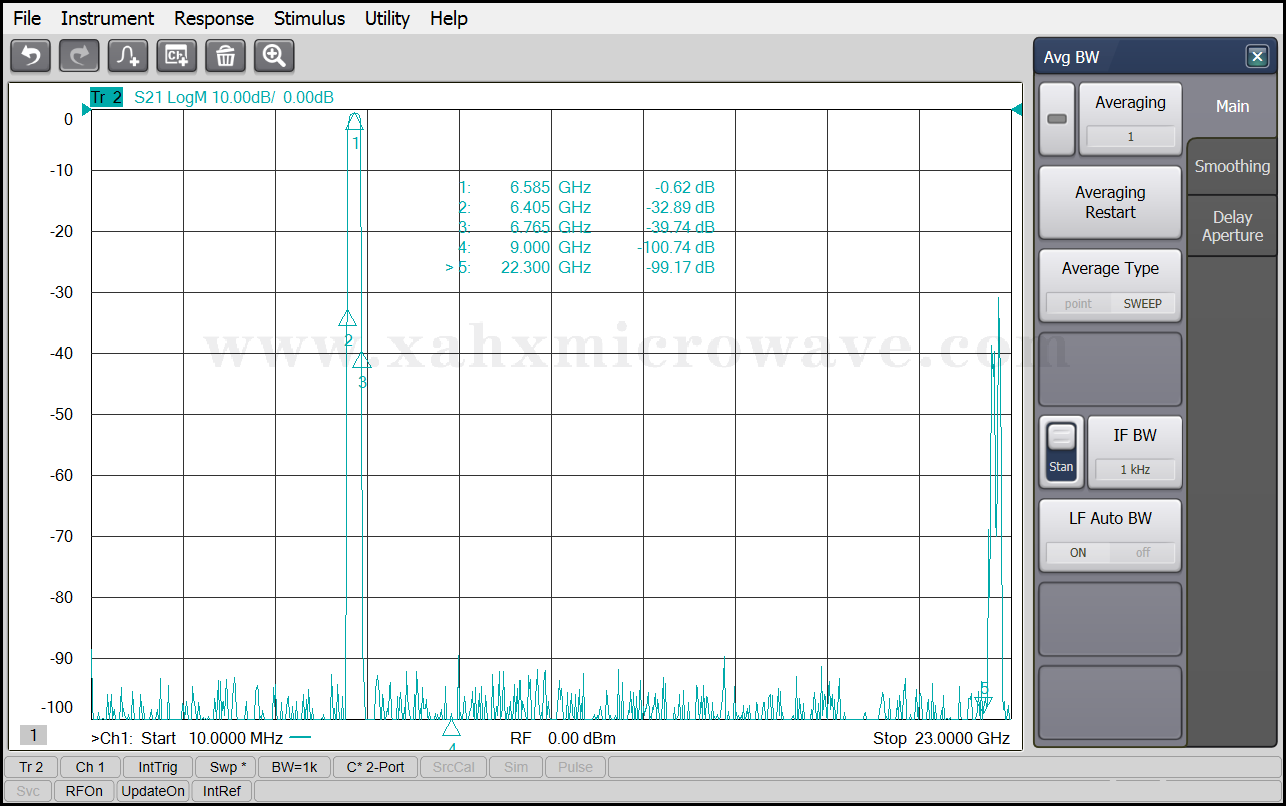

| Test Curve | |||
