| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2437MHz | |
| ● | Pass Band Frequency | 2426 ~ 2448MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥21dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 2406MHz | ≥40dB @ 2468 ~ 6000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | N-Female / SMA-Female | |
| ● | Surface Finish | Painted Black | |

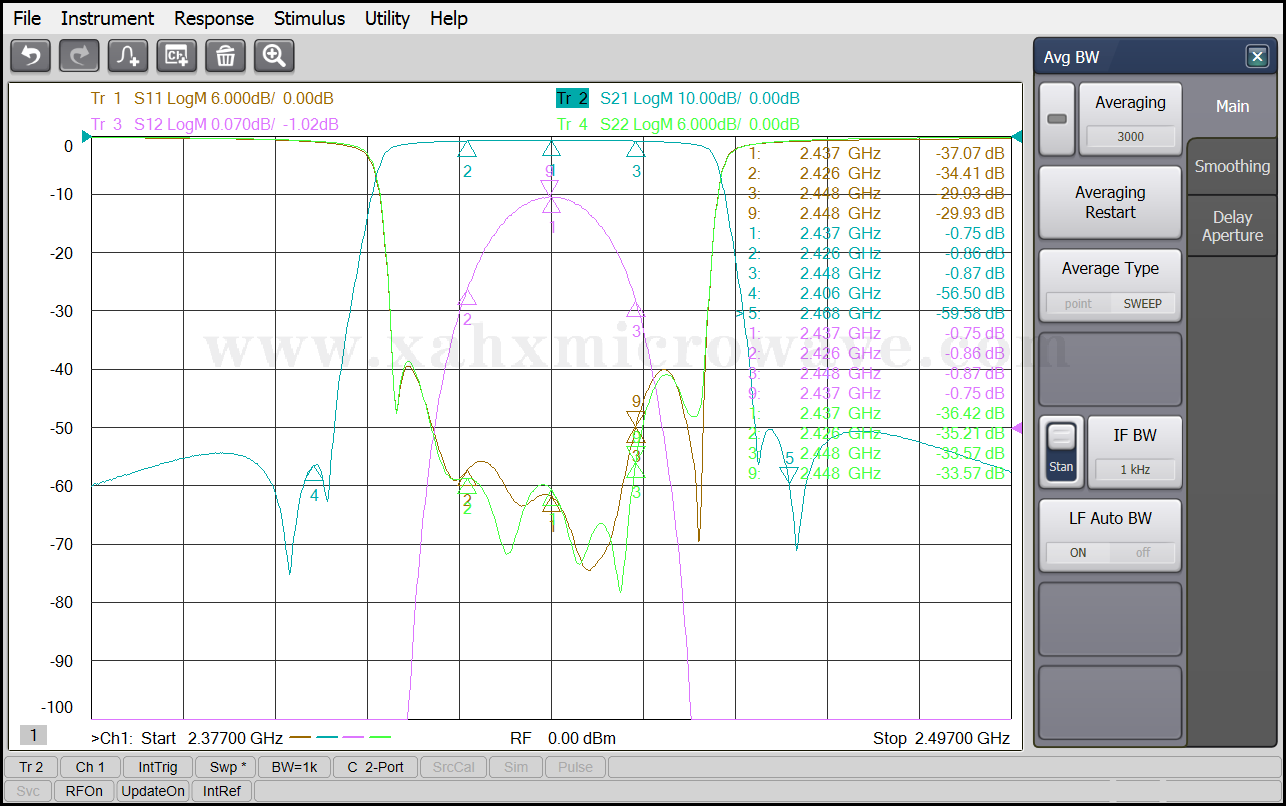

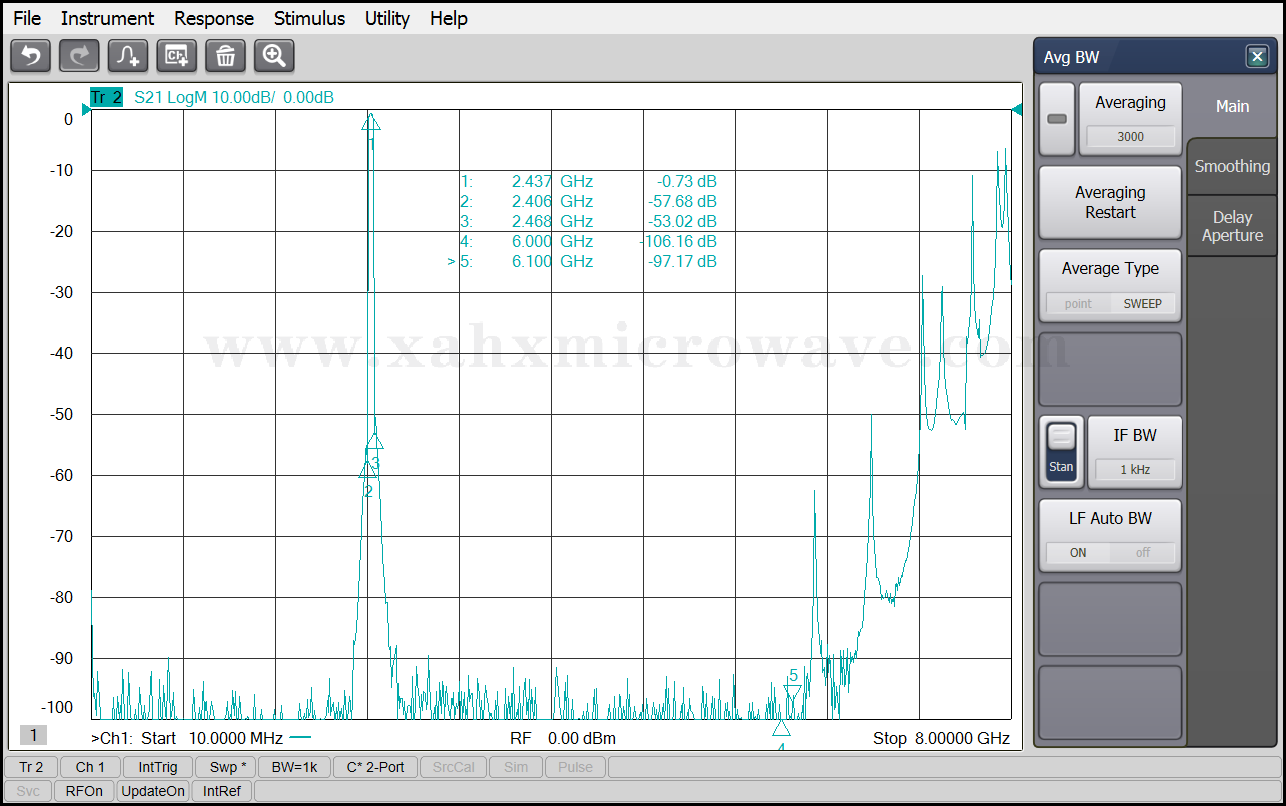

| Test Curve | |||
