| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 13800MHz | |
| ● | Pass Band Frequency | 12800 ~ 14800MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 12100MHz | ≥40dB @ 15250 ~ 15500MHz |
| ≥40dB @ 12100 ~ 12350MHz | ≥80dB @ 15500 ~ 30000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

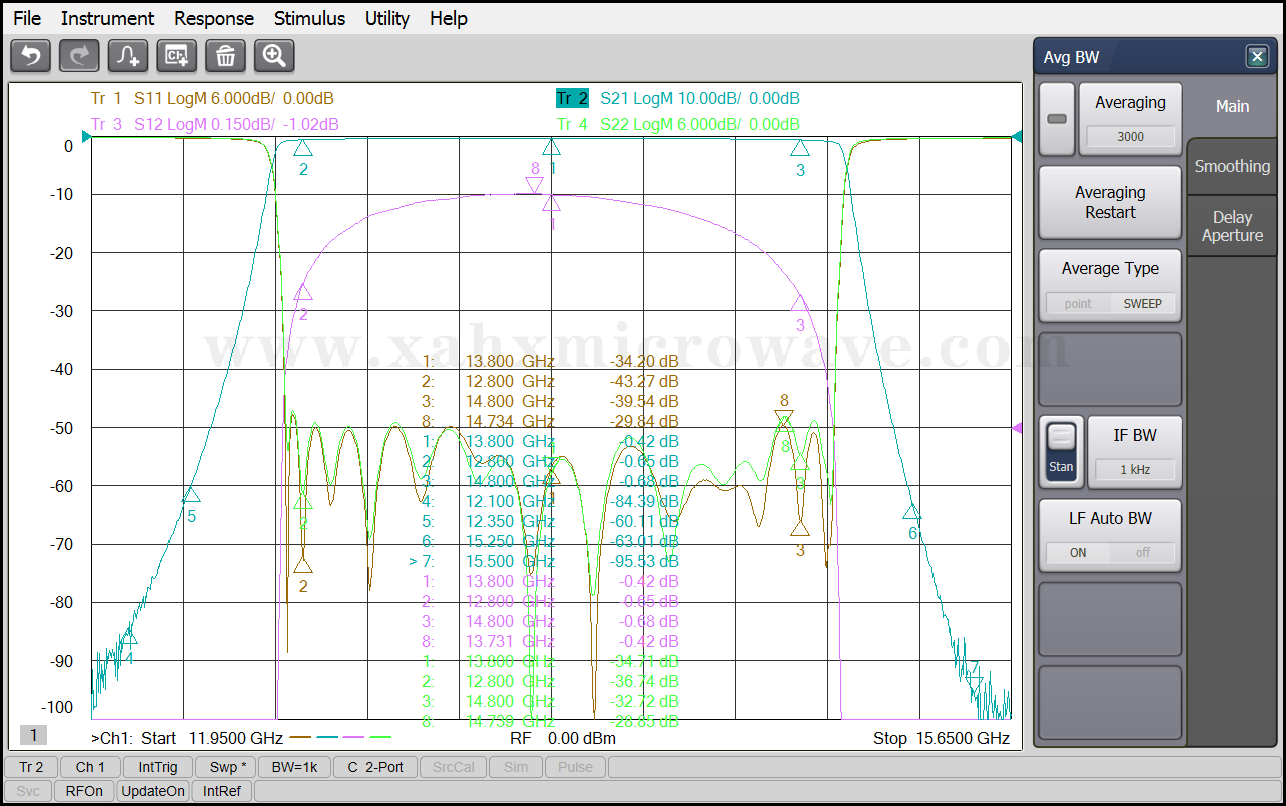

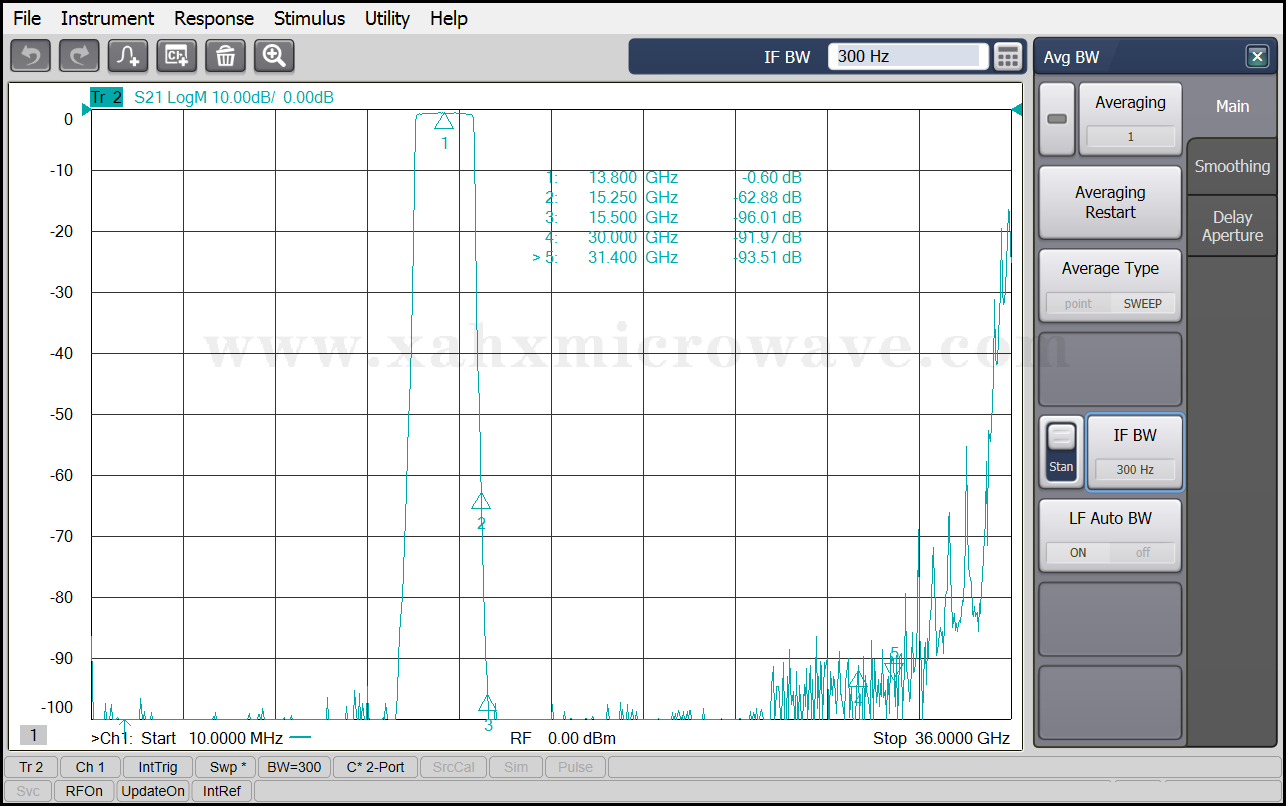

| Test Curve | |||
