| Technical Data Sheet | |||
| S/N | Item | P1 | P2 |
| ● | Center Frequency(F0) | 1995MHz | 2185MHz |
| ● | Pass Band Frequency | 1970~ 2020MHz | 2160~ 2210MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | VSWR | ≤1.40:1 | ≤1.40:1 |
| ● | Stop Band Rejection | ≥60dB@2160~ 2210MHz | ≥60dB@1970~ 2020MHz |
| ● | Average Power | 30W Max. | |
| ● | Impedance | 50 Ohms | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Natural conductive oxidation | |

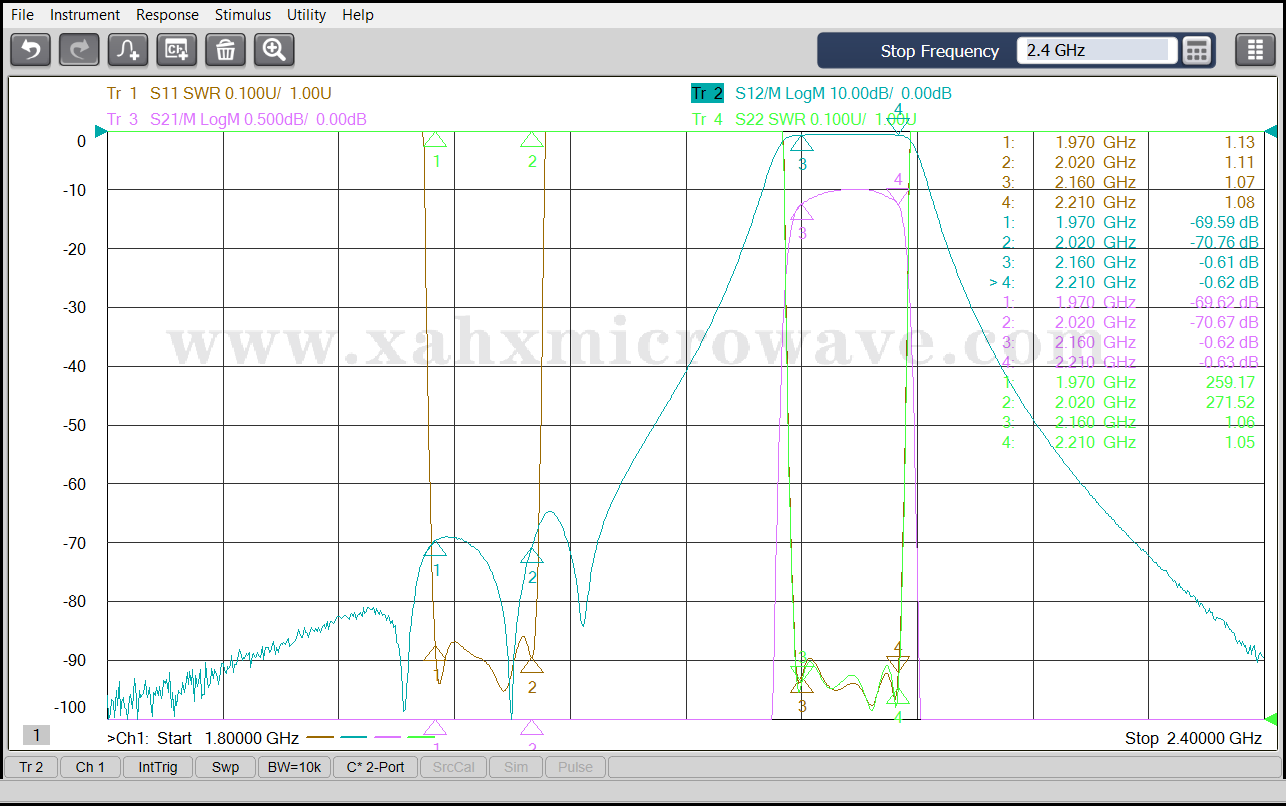

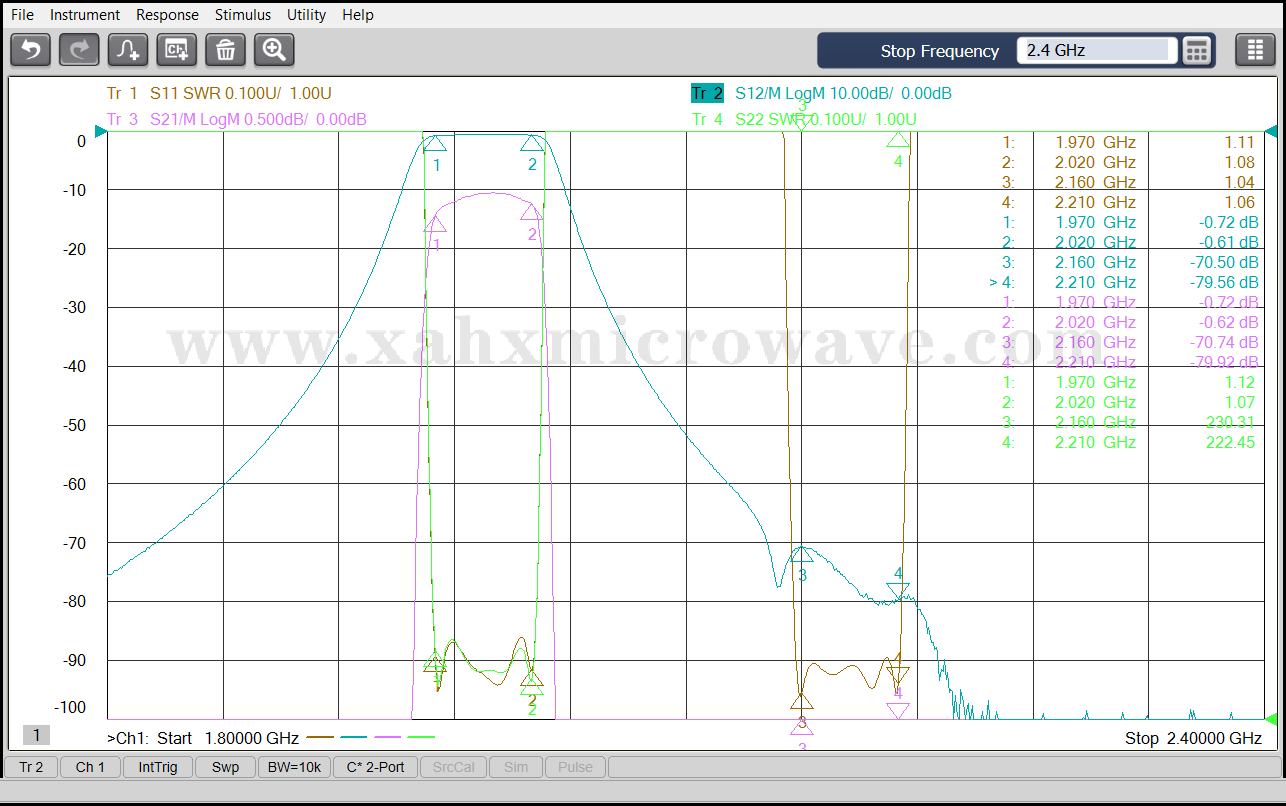

| Test Curve | |||
