| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7987.5MHz | |
| ● | Pass Band Frequency | 7163 ~ 8812MHz | |
| ● | Pass Band Insertion Loss | ≤0.7dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6288MHz | ≥50dB @ 9312 ~ 9537MHz |
| ≥50dB @ 6288 ~ 6663MHz | ≥80dB @ 9537 ~ 25000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W CW | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

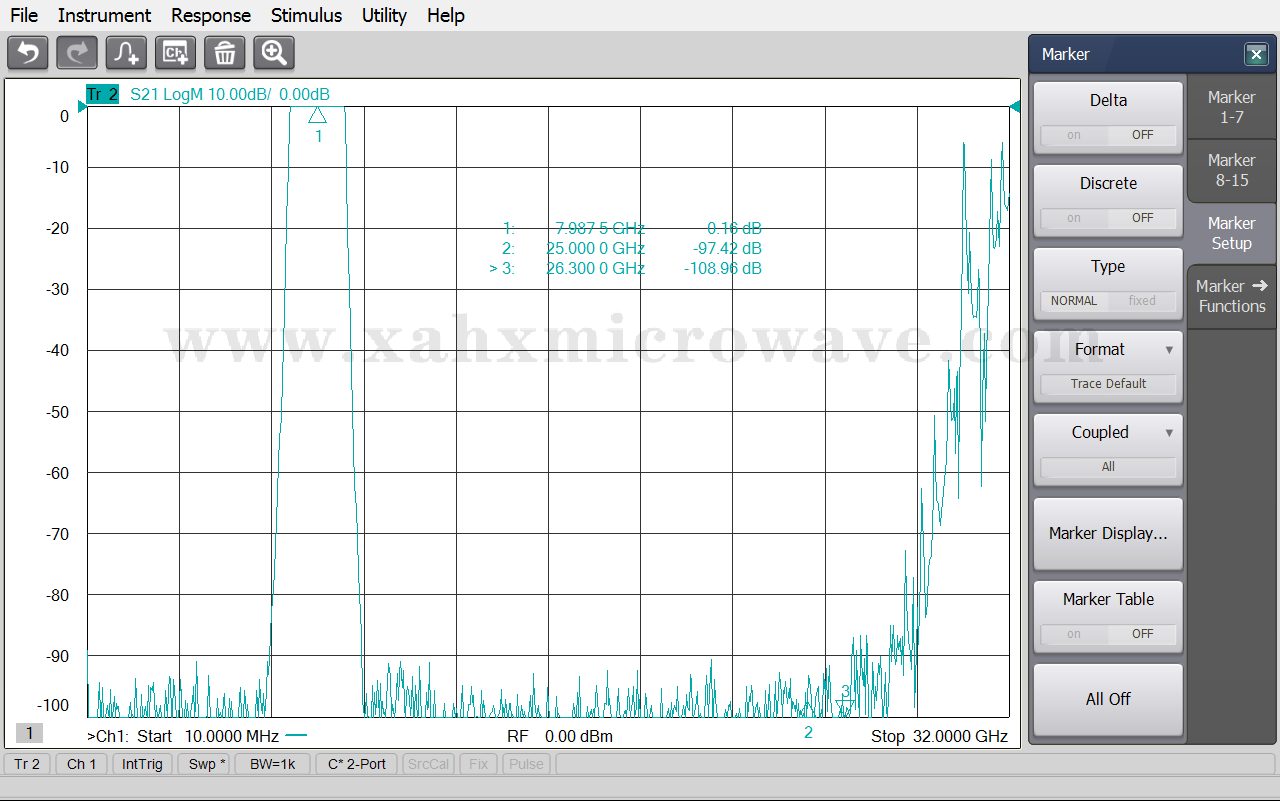

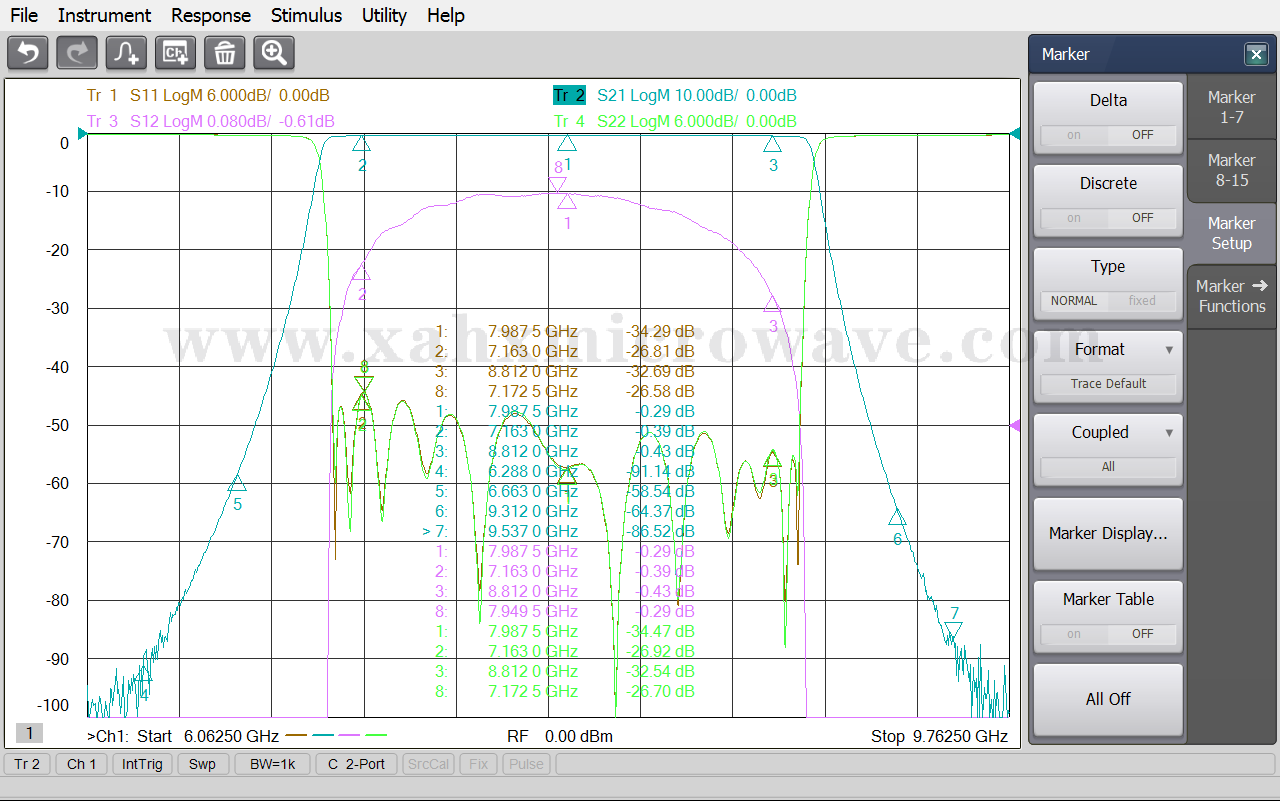

| Test Curve | |||
