Coaxial detectors

0.01-40GHz Coaxial detector

P/N：HXJ-BQ2-40
frequency:0.01-40GHz
Connectors：2.92mm
Product description: serial coaxial detectors are used in kinds of military or civil electronic equipment such as communication, radar, microwave measurement.
PDF technical index download

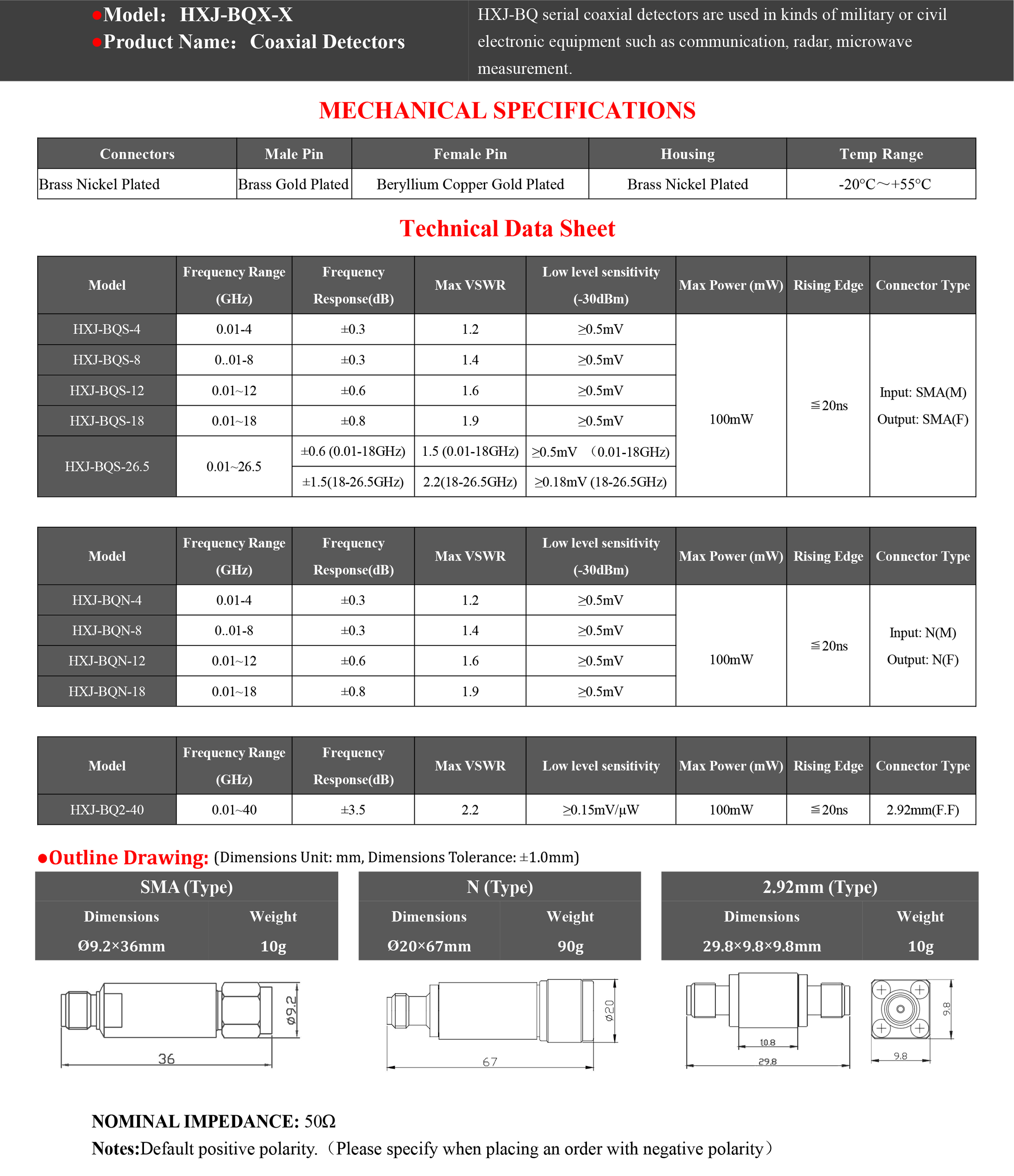

《2.92mm-Type》 Technical Data Sheet
Model	Frequency Range	Frequency Response	Max VSWR	Low level sensitivity
	(GHz)	(dB)
HXJ-BQ2-40	0.01~40	±3.5	2.2	≥0.15mV/μW
●Max Power (mW):100mW
●Rising Edge:≦20ns
●Connector Type:Input: 2.92mm(F) Output: 2.92mm(F)
●NOMINAL IMPEDANCE: 50Ω
●Parameter Test: (under rising edge 50 Ω state) (under output voltage 1M Ω state)
●Notes:Default positive polarity.（Please specify when placing an order with negative polarity）
