Coaxial detectors

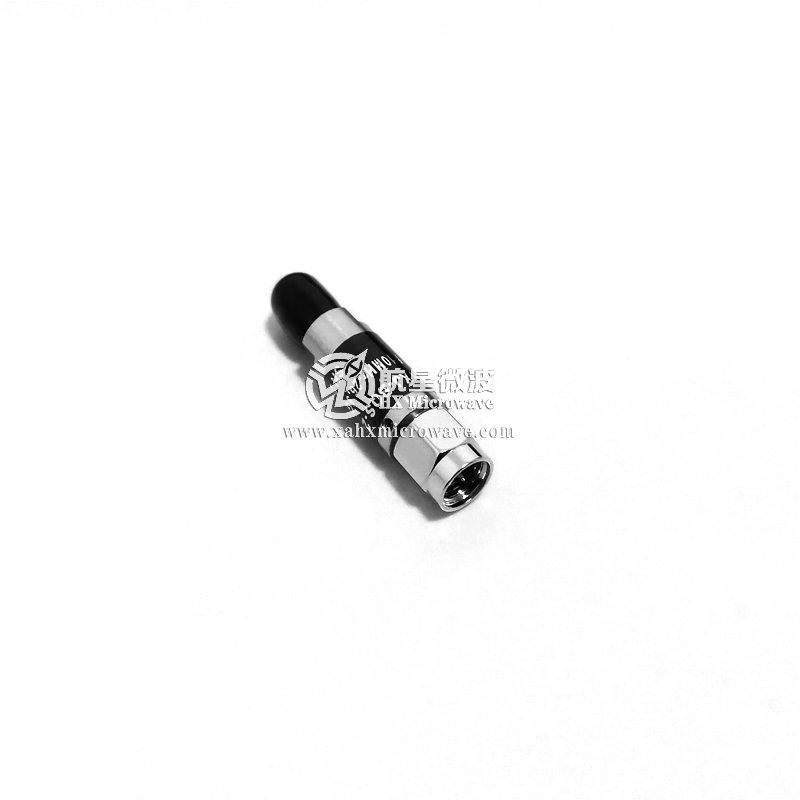

SMA coaxial detector 0.01-4GHz_8GHz_12GHz_18GHz_26.5GHz

P/N：HXJ-BQS-XX
Optional frequency:0.01-4GHz_8GHz_12GHz_18GHz_26.5GHz
Connectors：SMA-JK
Product description: Coaxial detector model: HXJ-BQS-XX (XX stands for optional frequency) (eg: 0.01-18GHz model: HXJ-BQS-18) Frequency selectable range: 0.01-4GHz_0.01-8GHz_0.01-12GHz_0.01-18GHz_0.01-26.5GHz
PDF technical index download

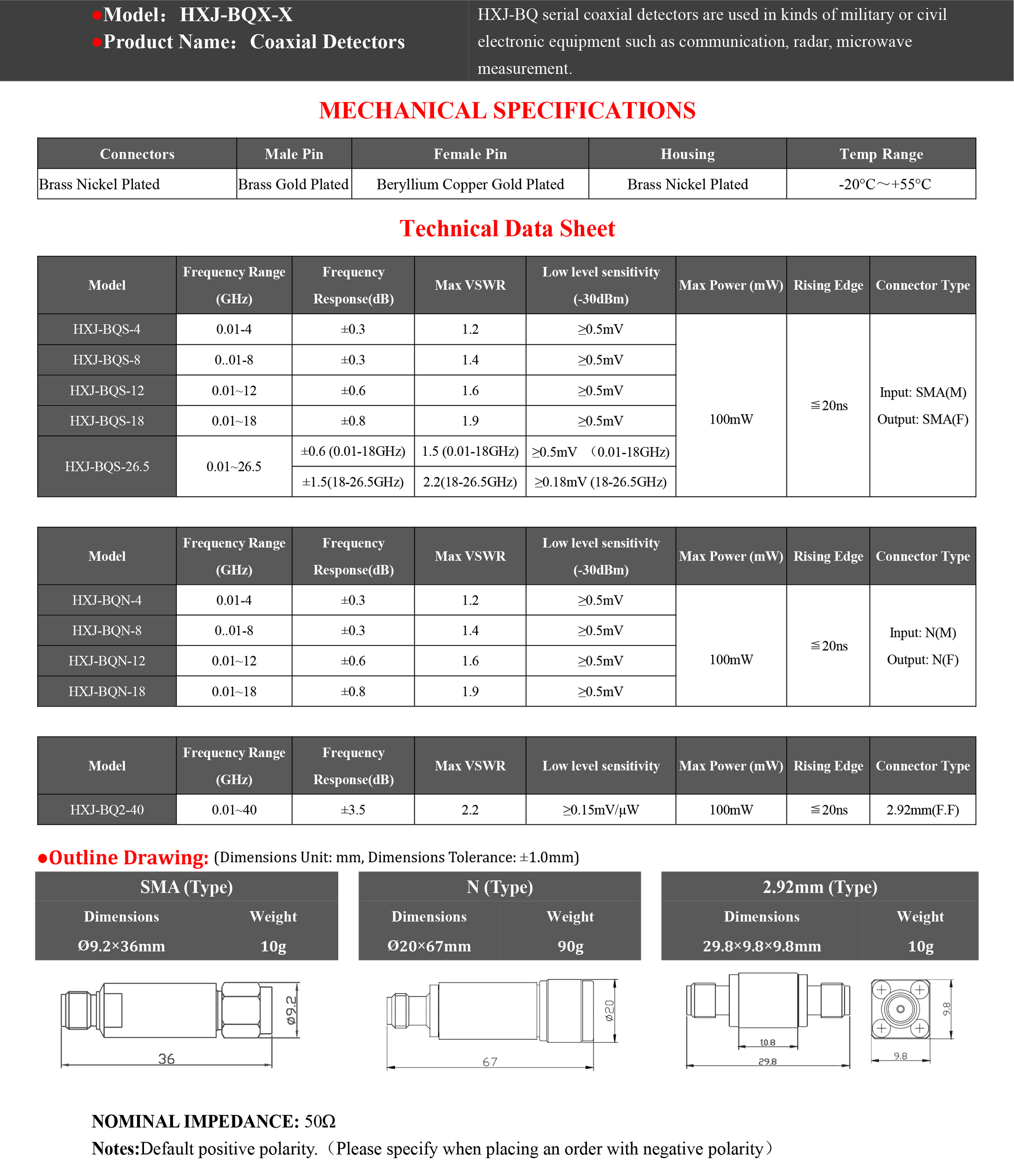

《SMA-Type》Technical Data Sheet
Model	Frequency Range	Frequency Response	Max VSWR	Low level sensitivity
	(GHz)	(dB)		(-30dBm)
HXJ-BQS-4	0.01-4	±0.3	1.2	≥0.5mV
HXJ-BQS-8	0..01-8	±0.3	1.4	≥0.5mV
HXJ-BQS-12	0.01~12	±0.6	1.6	≥0.5mV
HXJ-BQS-18	0.01~18	±0.8	1.9	≥0.5mV
HXJ-BQS-26.5	0.01~26.5	±0.6 (0.01-18GHz)	1.5 (0.01-18GHz)	≥0.5mV （0.01-18GHz)
		±1.5(18-26.5GHz)	2.2(18-26.5GHz)	≥0.18mV (18-26.5GHz)
●Max Power :100mW
●Rising Edge:≦20ns
●Connector Type:Input: SMA(M) Output: SMA(F)
《Fast Rising Edge》 Technical Data Sheet
Model	Frequency Range	Frequency Response	Max VSWR	Low level sensitivity
	(GHz)	(dB)
HXJ-BQS-18-K	1.0~18GHz	±1.0	1.8	≥0.5mV/μ W
●Max Power (mW):100mW
●Rising Edge:1-4GHz（＜8ns） 4-18GHz（≦5ns）
●Connector Type:Input: SMA(M) Output: SMA(F)
●NOMINAL IMPEDANCE: 50Ω
●Parameter Test: (under rising edge 50 Ω state) (under output voltage 1M Ω state)
●Notes:Default positive polarity.（Please specify when placing an order with negative polarity）
