Coaxial detectors

N-type coaxial detector 0.01-4GHz_8GHz_12GHz_18GHz

P/N：HXJ-BQN-XX
Optional frequency:0.01-4GHz_8GHz_12GHz_18GHz
Connectors：SMA-JK
Product description: Coaxial detector model: HXJ-BQN-XX (XX represents optional frequency) (eg: 0.01-18GHz model is: HXJ-BQN-18) Frequency selectable range: 0.01-4GHz_0.01-8GHz_0.01-12GHz_0. 01-18GHz
PDF technical index download

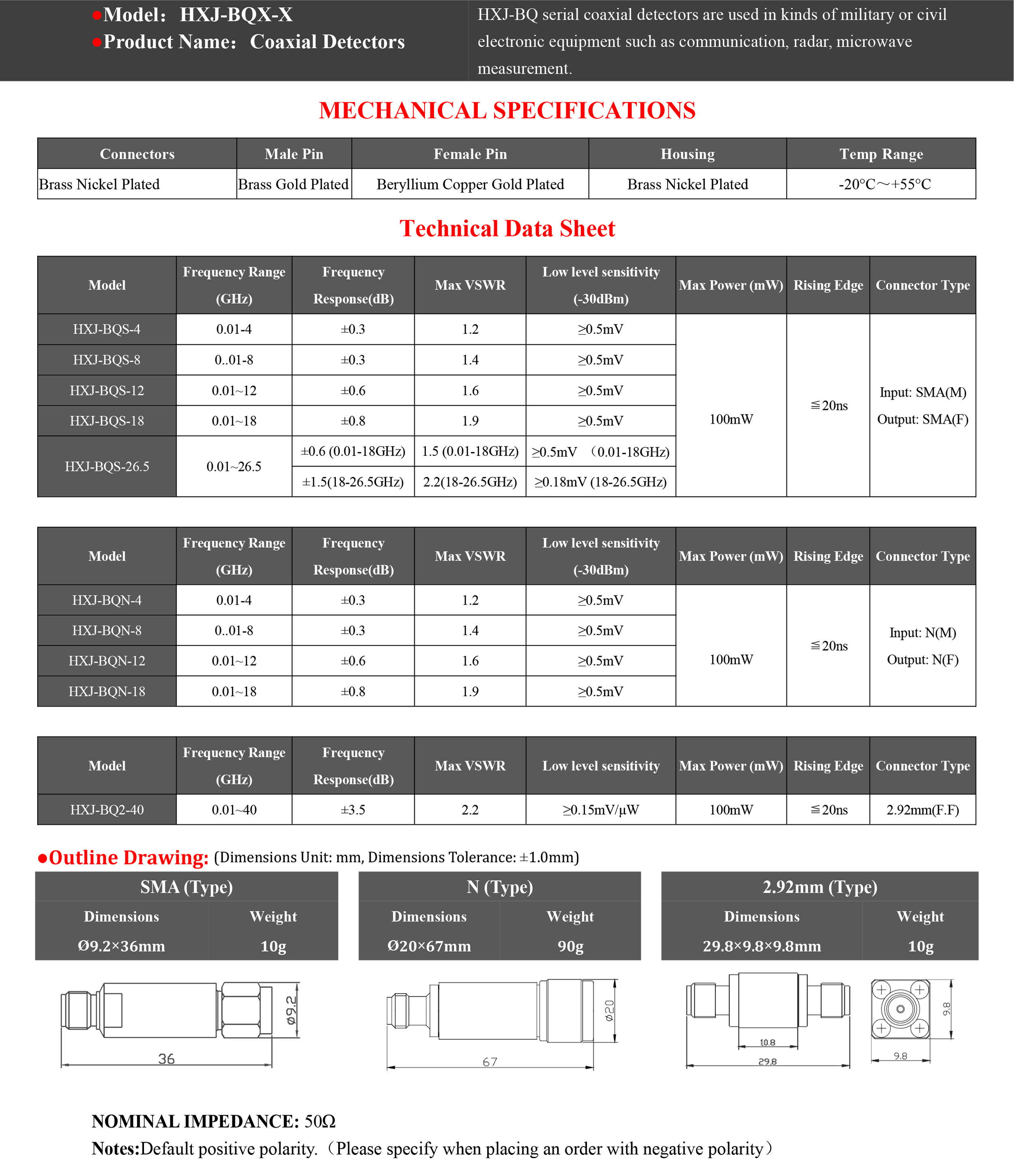

《N-Type》 Technical Data Sheet
Model	Frequency Range	Frequency Response	Max VSWR	Low level sensitivity
Model	(GHz)	(dB)	Max VSWR	(-30dBm)
HXJ-BQN-4	0.01-4	±0.3	1.2	≥0.5mV
HXJ-BQN-8	0..01-8	±0.3	1.4	≥0.5mV
HXJ-BQN-12	0.01~12	±0.6	1.6	≥0.5mV
HXJ-BQN-18	0.01~18	±0.8	1.9	≥0.5mV
●Max Power (mW):100mW
●Rising Edge:≦20ns
●Connector Type:Input: N(M) Output: N(F)
●NOMINAL IMPEDANCE: 50Ω
●Parameter Test: (under rising edge 50 Ω state) (under output voltage 1M Ω state)
●Notes:Default positive polarity.（Please specify when placing an order with negative polarity）
